Driver Power Window Switch

  1. Disconnect the negative battery terminal.
  2. Remove the front door trim.

    (Refer to Body - "FRONT DOOR TRIM ")

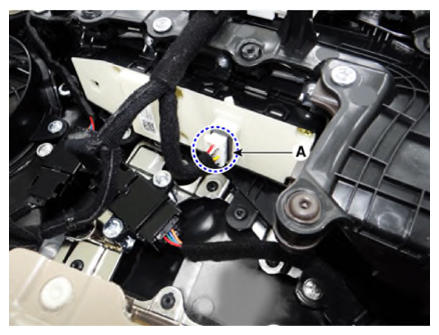

  3. Disconnect the power window switch connector (A).
    G13128996Courtesy of KIA MOTORS AMERICA, INC.

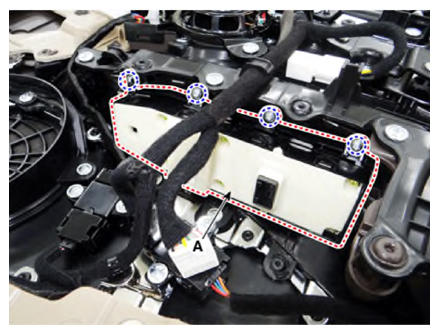

  4. Remove the power window switch (A) after loosening the mounting screws.
G13128997Courtesy of KIA MOTORS AMERICA, INC.
