Rear Power Window Switch

  1. Disconnect the negative battery terminal.
  2. Remove the rear door trim.

    (Refer to Body - "REAR DOOR TRIM ")

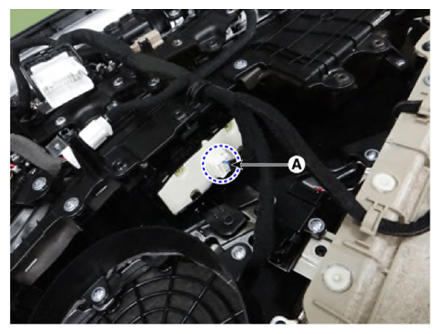

  3. Disconnect the power window switch connector (A).
    G13129000Courtesy of KIA MOTORS AMERICA, INC.

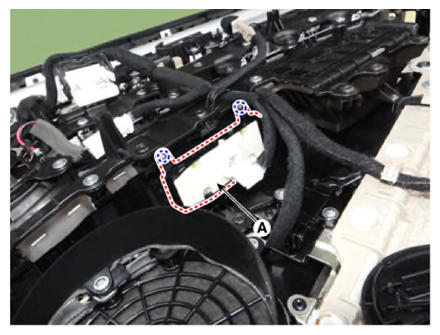

  4. Remove the power window switch (A) after loosening the mounting screws.
G13129001Courtesy of KIA MOTORS AMERICA, INC.
