Special Service Tools

Tool Name/Number	Illustration	Description
Fuel Pressure Gauge 09353-24100	Courtesy of KIA MOTORS AMERICA, INC.	Used for measuring the pressure in fuel line
Fuel Pressure Gauge Adapter 0K353-D4100	Courtesy of KIA MOTORS AMERICA, INC.	Used for connecting between high pressure fuel pump and low pressure fuel feed tube to measure the pressure in fuel line SST 09353-C1000 also can be used
Heated Oxygen Sensor Socket Wrench 09392-1Y100 (19 mm)	Courtesy of KIA MOTORS AMERICA, INC.	Removal and installation of the heated oxygen sensor SST No. 09392-2H100 model also can be used for removing the Heated Oxygen Sensor.
Torque Wrench Socket 0K353-F6100 (17 mm)	Courtesy of KIA MOTORS AMERICA, INC.	Used for removing/installing high pressure fuel pipe

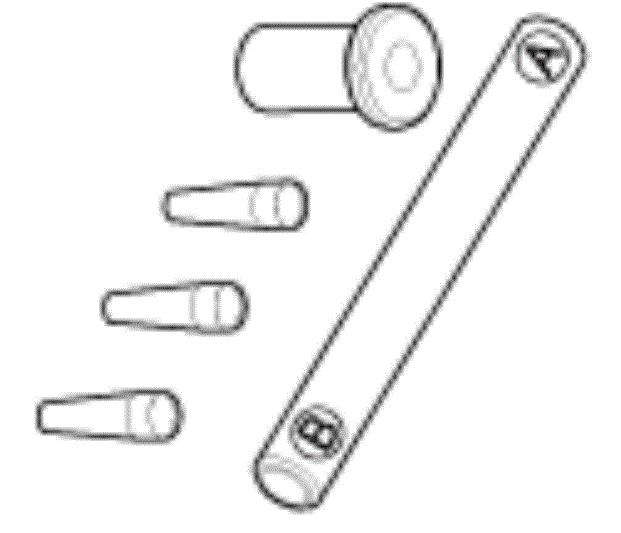

Injector Combustion Seal Guide & Sizing tool 09353-2B000	Courtesy of KIA MOTORS AMERICA, INC.	Used for installing injector combustion seal on injector
Injector Remover 09351-D2100	Courtesy of KIA MOTORS AMERICA, INC.	Removing the stuck injector
