AGM Battery: Specifications: Specification: Notes
AGM105L-DIN
| Item | Specification |
|---|---|
| Model type | AGM105L-DIN |
| Capacity [20HR/5HR] | (AH) 105/84 |
| Cold Cranking Amperage (A) | 950 (SAE)/950 (EN) |
| Reserve Capacity (Min) | 190 |
| Specific Gravity | 1.28 - 1.34 [25°C (77°F)] |
Information

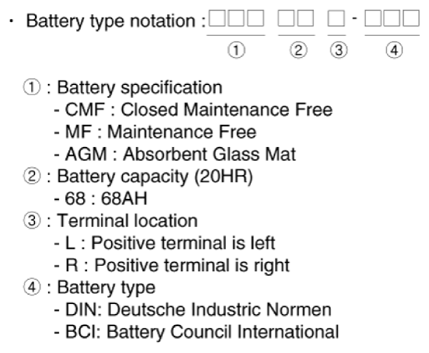

- Model type description
- Cold Cranking Ampere (CCA): A rating used in the battery industry to define a battery's ability to start an engine in cold temperatures.
- The rating is the number of amps a new, fully charged battery can deliver at -18°C (-0.4°F) for 30 seconds, while maintaining a voltage of at least 7.2 volts for a 12 volt battery.
- The higher the CCA rating, the greater the starting power of the battery.
- RESERVE CAPACITY (RC): A battery industry rating, defining a battery's ability to power a vehicle with an inoperative alternator or fan belt.
- The rating is the number of minutes a battery at 26.7°C (80°F) can be discharged at 25 amps and maintain a voltage of 10.5 volts for a 12 volt battery.
- The higher the reserve rating, the longer your vehicle can operate should your alternator or fan belt fail.
Information
BCI Type
Capacity

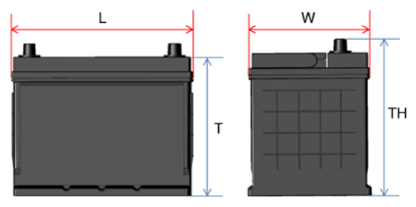

(5HR/20HR)Length Width Height Total Height L (mm) W (mm) T (mm) TH (mm) 28/35 188 - 192 126 - 130 198 - 202 218 - 222 32/40 194 - 198 133 - 137 199 - 203 223 - 227 36/45 203 - 207 173 - 177 200 - 204 221 - 225 44/55 213 - 217 173 - 177 198 - 202 218 - 222 48/60 228 - 232 173 - 177 200 - 204 221 - 225 54/68 258 - 262 173 - 177 198 - 202 220 - 224 56/70 258 - 262 173 - 177 198 - 202 223 - 227 64/80 274 - 278 170 - 174 198 - 202 221 - 225 70/88 349 - 353 172 - 176 186 - 200 183 - 187 72/90 300 - 304 170 - 174 200 - 204 221 - 225 76/95 294 - 298 172 - 176 198 - 202 220 - 224 80/100 326 - 330 170 - 174 203 - 207 225 - 229
