Repair Procedures: Replacement

Remove the front door module.
(Refer to Front Door - "FRONT DOOR MODULE ")

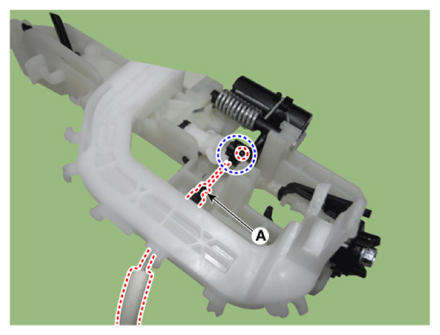

Remove the front door inside handle cage (A).

Courtesy of KIA MOTORS AMERICA, INC.

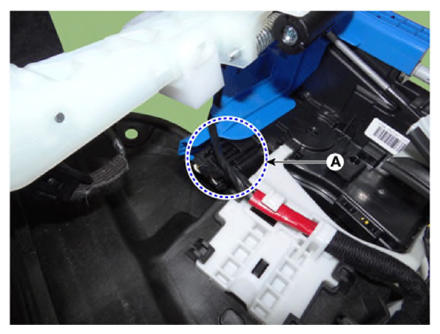

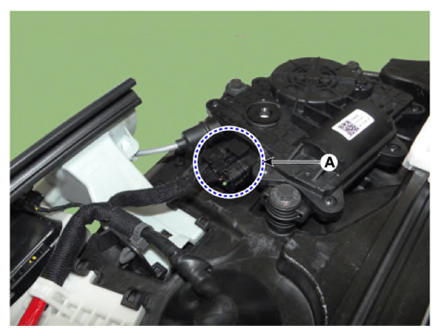

Disconnect front door power latch actuator connector (A).

Courtesy of KIA MOTORS AMERICA, INC.

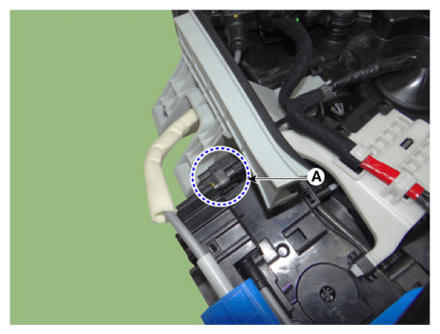

Disconnect front door power latch connector (A).

Courtesy of KIA MOTORS AMERICA, INC.

Courtesy of KIA MOTORS AMERICA, INC.

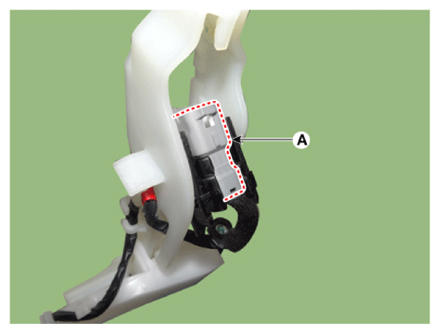

To remove the front door outside handle base connector (A), widen both sides of the wiring fastener and then push back the front door outside handle base connector.

Courtesy of KIA MOTORS AMERICA, INC.

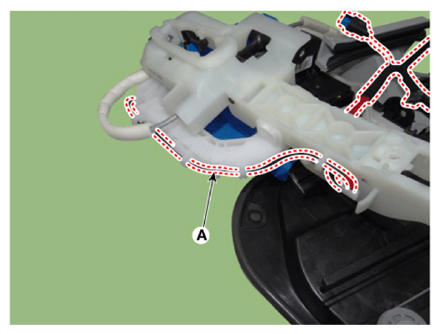

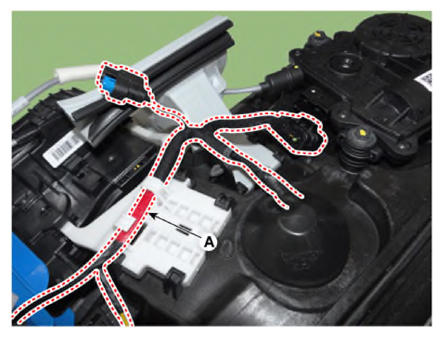

Remove the front door outside handle connector wiring harness (A).

Courtesy of KIA MOTORS AMERICA, INC.

Courtesy of KIA MOTORS AMERICA, INC.

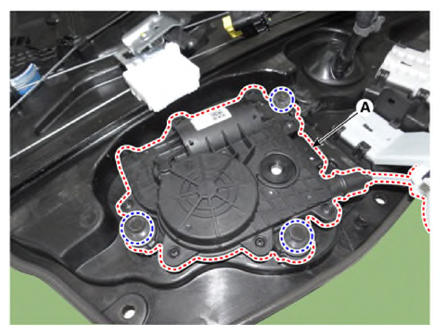

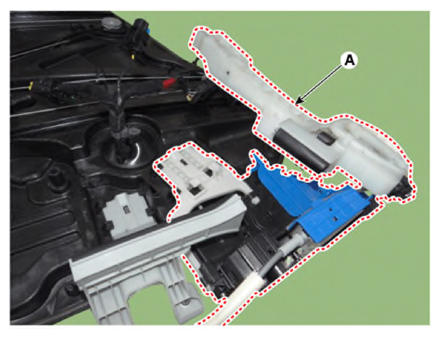

After loosening the mounting bolts, remove the front power door latch assembly & outside handle support bracket (A).

Courtesy of KIA MOTORS AMERICA, INC.

Courtesy of KIA MOTORS AMERICA, INC.
Remove the front door outside handle base (A) by pushing in the lock pins located in the back.

Courtesy of KIA MOTORS AMERICA, INC.

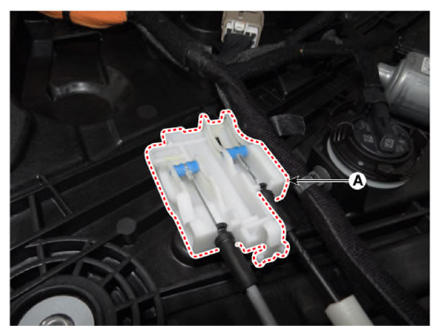

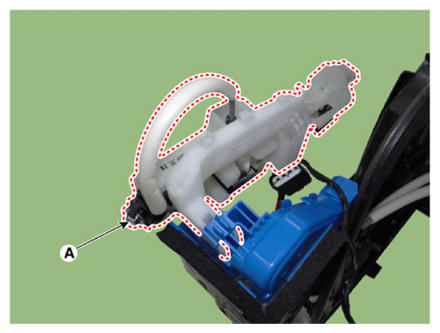

Remove the front door outside handle cable (A).

Courtesy of KIA MOTORS AMERICA, INC.
To install, reverse the removal procedure.
Information
- Make sure the connector is connected properly.
- Make sure the door locks/unlocks and opens/closes properly.
- Replace any damaged clips (or pin-type retainers).
