Repair Procedures: Disassembly

NON-ISG Type Only

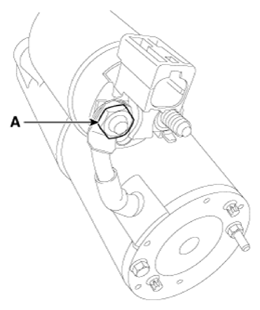

1. Disconnect the M-terminal (A) on the starter solenoid assembly.

   Courtesy of KIA MOTORS AMERICA, INC.

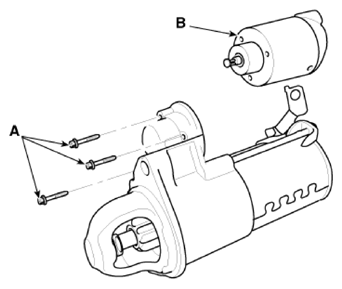

2. After loosening the screws (A), detach the starter solenoid assembly (B).

   Courtesy of KIA MOTORS AMERICA, INC.

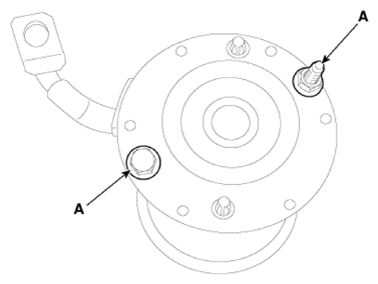

3. Loosen the through bolts (A).

   Courtesy of KIA MOTORS AMERICA, INC.

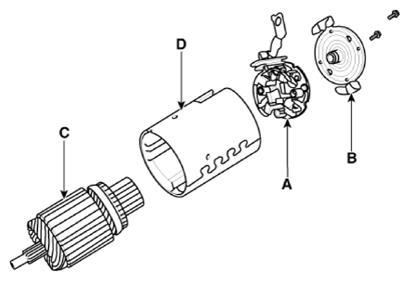

4. Remove the brush holder assembly (A), rear bracket assembly (B) after loosening the mounting screws.
5. Remove the armature assembly (C) and yolk assembly (D).

   Courtesy of KIA MOTORS AMERICA, INC.

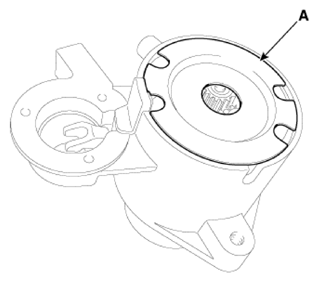

6. Remove the shield (A).

   Courtesy of KIA MOTORS AMERICA, INC.

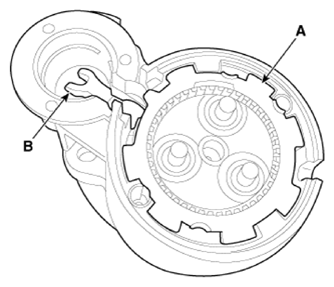

7. Remove the lever packing (A) and the planet gear (B).

   Courtesy of KIA MOTORS AMERICA, INC.

8. Remove the clutch set assembly (A) and lever (B).

   Courtesy of KIA MOTORS AMERICA, INC.

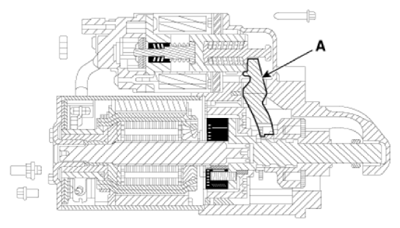

   NOTE: Beware of the direction of the lever (A).

   Courtesy of KIA MOTORS AMERICA, INC.

9. Press the stopper (A) using a socket (B).

   Courtesy of KIA MOTORS AMERICA, INC.

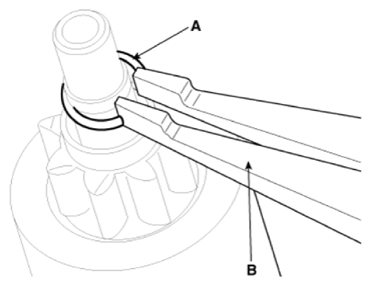

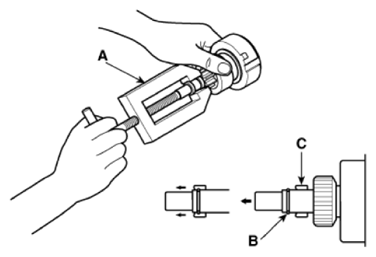

10. Remove the stop ring (A) using the stop ring pliers (B).

    Courtesy of KIA MOTORS AMERICA, INC.

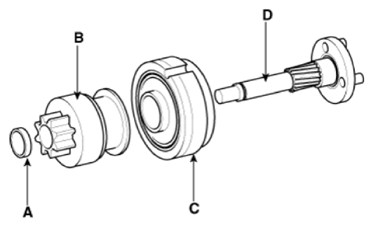

11. Remove the stopper (A), overrunning clutch (B), internal gear (C) and planet shaft (D).

Courtesy of KIA MOTORS AMERICA, INC.

Courtesy of KIA MOTORS AMERICA, INC.
