Repair Procedures: Replacement

Switch "OFF" the ignition and disconnect the negative (-) battery terminal.
Remove the RH engine mounting support bracket.
(Refer to Engine Mechanical System - "ENGINE MOUNTING ")

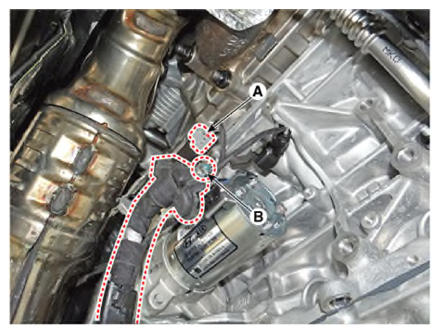

Remove the stater solenoid "B" terminal mounting nut (B), and then disconnect the stater cable and ST connector (A).
Tightening torque:

9.8 - 12.7 N.m (1.0 - 1.3 kgf.m, 7.2 - 9.4 lb.ft)

Courtesy of KIA MOTORS AMERICA, INC.

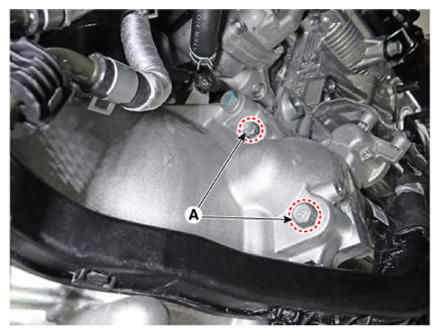

Remove the starter mounting bolts (A).
Tightening torque:

49.0 - 63.7 N.m (5.0 - 6.5 kgf.m, 36.2 - 47.0 Ib-ft)

Courtesy of KIA MOTORS AMERICA, INC.

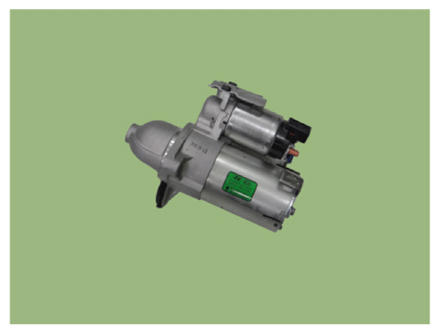

Courtesy of KIA MOTORS AMERICA, INC.
Install in the reverse order of removal.
