Repair Procedures: Replacement

  1. Turn the ignition switch OFF and disconnect the battery negative (-) terminal.
  2. Remove the fuel filler cap after opening the fuel filler door.
  3. Lift the vehicle.
  4. Remove the rear-left wheel & tire and wheel house cover.

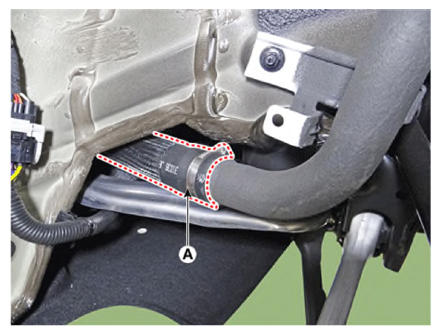

  5. Disconnect the fuel filler hose (A).
    G13143596Courtesy of KIA MOTORS AMERICA, INC.

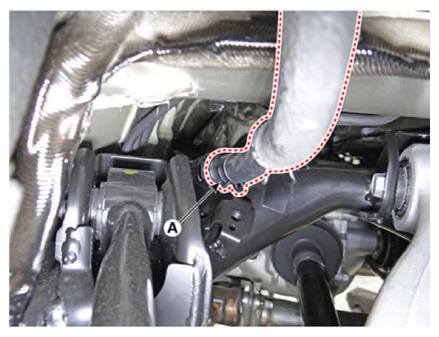

  6. Disconnect the Leveling hose (A).
    G13143597Courtesy of KIA MOTORS AMERICA, INC.

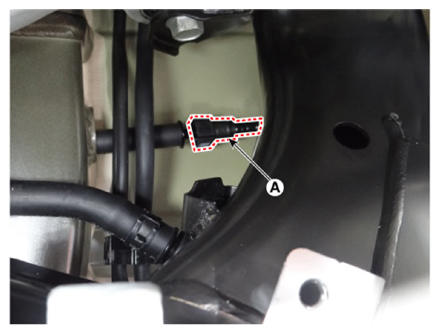

  7. Disconnect the vent hose quick-connector (A).
    G13143598Courtesy of KIA MOTORS AMERICA, INC.

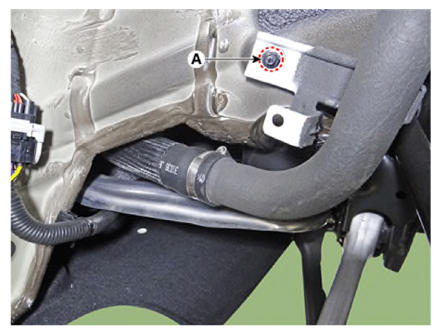

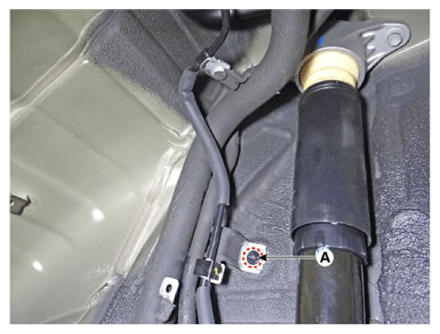

  8. Remove the mounting bolts (A), and then remove the fill-neck assembly.
    G13143599Courtesy of KIA MOTORS AMERICA, INC.
    G13143600Courtesy of KIA MOTORS AMERICA, INC.
  9. Install in the reverse order of removal.
