Repair Procedures: Replacement

  1. Turn the ignition switch OFF and disconnect the battery negative (-) terminal.
  2. Remove the luggage side trim.

    (Refer to Body (Interior and Exterior) - "TRUNK TRIM ")

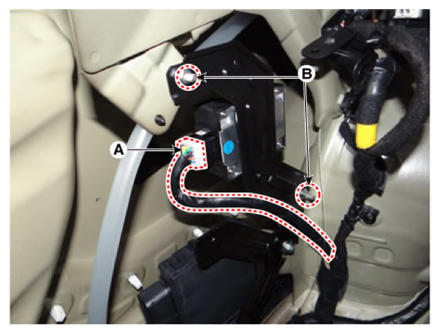

  3. Disconnect the fuel pump control module connector (A).
  4. Remove the mounting nuts (B), and then remove the fuel pump control module from the vehicle.
    G13143577Courtesy of KIA MOTORS AMERICA, INC.
  5. Install in the reverse order of removal.
