Repair Procedures: Replacement

Release the residual pressure in fuel line.
(Refer to Fuel Delivery System - "RELEASE RESIDUAL PRESSURE IN FUEL LINE ")
Switch "OFF" the ignition and disconnect the negative (-) battery terminal.
Remove the rear seat cushion.
(Refer to Body - "REAR SEAT ASSEMBLY ")

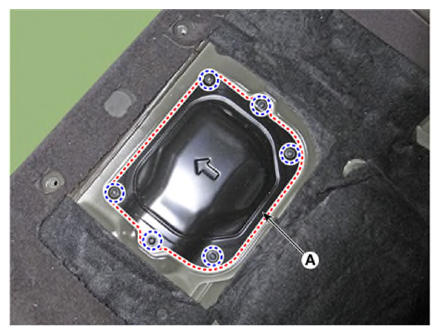

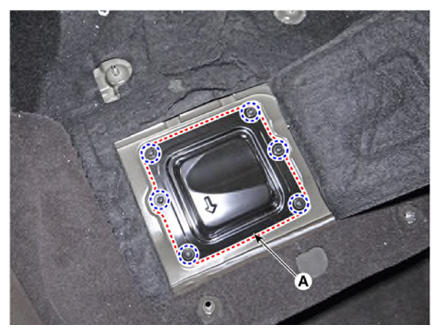

Remove the fuel pump service cover (A) after loosening the mounting screws.

Courtesy of KIA MOTORS AMERICA, INC.

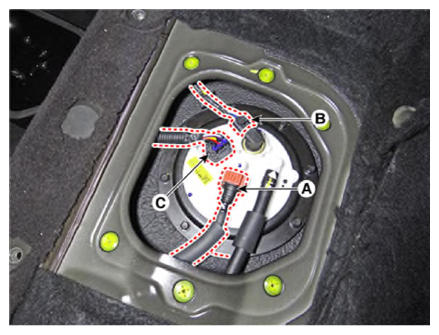

Disconnect the fuel feed quick-connector (A).
Disconnect the fuel pressure sensor connector (B).
Disconnect the fuel pump connector (C).

Courtesy of KIA MOTORS AMERICA, INC.
Remove the sub fuel sender service cover (A) after loosening the mounting screws.

Courtesy of KIA MOTORS AMERICA, INC.

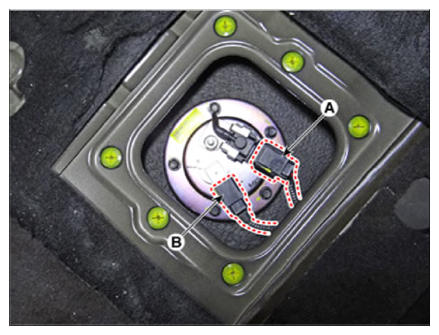

Disconnect the fuel tank pressure sensor connector (A).
Disconnect the sub fuel sender connector (B).

Courtesy of KIA MOTORS AMERICA, INC.
Lift the vehicle.
Remove the center muffler assembly.
(Refer to Engine Mechanical System - "MUFFLER ")
Remove the propeller shaft assembly.
(Refer to Driveshaft and Axle - "PROPELLER SHAFT ")

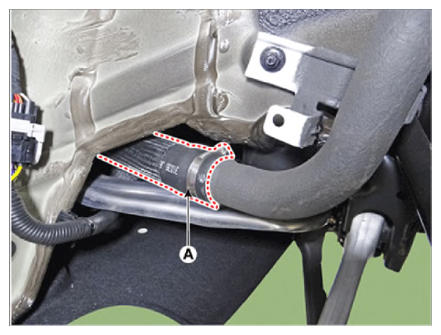

Disconnect the fuel filler hose (A).

Courtesy of KIA MOTORS AMERICA, INC.

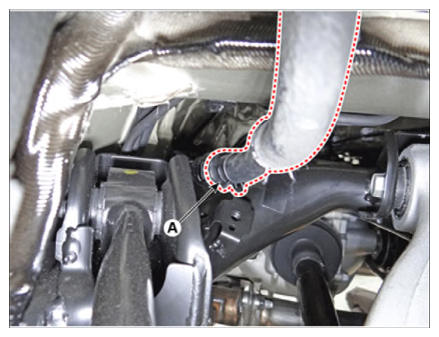

Disconnect the leveling hose (A).

Courtesy of KIA MOTORS AMERICA, INC.

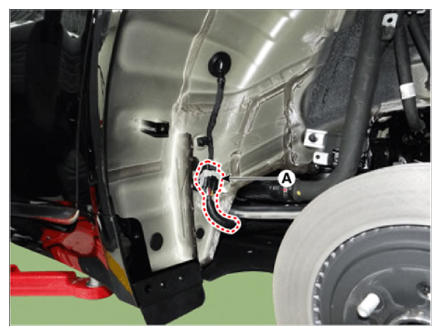

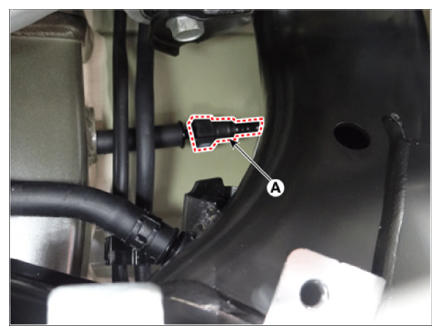

Disconnect the ventilation (A).

Courtesy of KIA MOTORS AMERICA, INC.
Disconnect the fuel tank extension connector (A), and then remove the wiring harness from the vehicle.

Courtesy of KIA MOTORS AMERICA, INC.

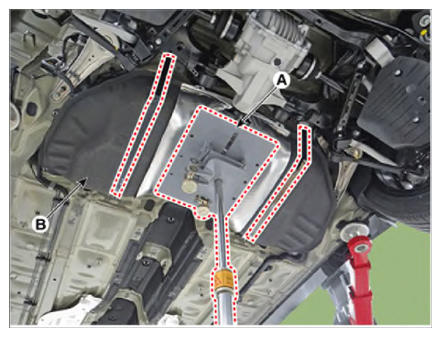

Support the fuel tank with jack (A).

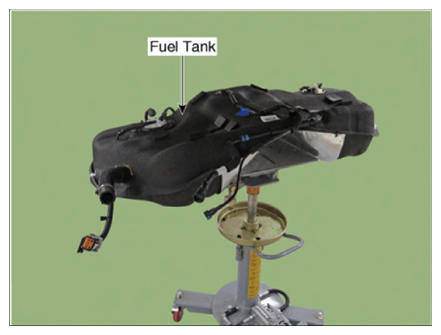

Remove the fuel tank installation nuts, and then loosen the fuel tank (B).
Tightening torque:

39.2 - 53.9 N.m (4.0 - 5.5 kgf.m, 28.9 - 39.8 lb.ft)

Courtesy of KIA MOTORS AMERICA, INC.

Courtesy of KIA MOTORS AMERICA, INC.
Install in the reverse order of removal.
