Charging System: Battery
AGM105L-DIN
| Item | Specification |
|---|---|
| Model type | AGM105L-DIN |
| Capacity [20HR/5HR] (AH) | 105/84 |
| Cold Cranking Amperage (A) | 950 (SAE)/950 (EN) |
| Reserve Capacity (Min) | 190 |
| Specific Gravity | 1.28 - 1.34 [25°C (77°F)] |
Information

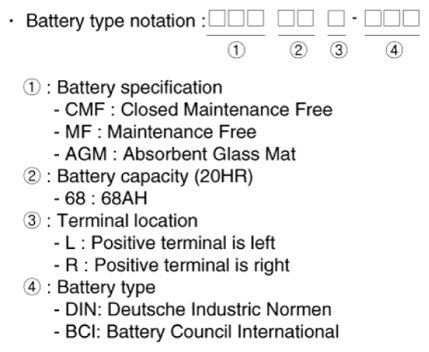

- Model type description
- Cold Cranking Ampere (CCA): A rating used in the battery industry to define a battery's ability to start an engine in cold temperatures.
- The maximum current that a fully charged battery can deliver at -18°C (-0.4°F) for 30 seconds while maintaining a voltage of at least 7.2 volts for a 12-volt battery.
- The higher the CCA rating, the greater the starting power of the battery.
- RESERVE CAPACITY (RC): A battery industry rating that defines the battery's ability to power a vehicle with an inoperative alternator or fan belt.
- The rating is the number of minutes a battery at 26.7°C (80°F) can be discharged at 25 amps and maintain a voltage of 10.5 volts for a 12 volt battery.
- The higher the reserve rating, the longer your vehicle can operate should your alternator or fan belt fail.
Information
