Repair Procedures: Installation
- Install in the reverse order of removal.NOTE:

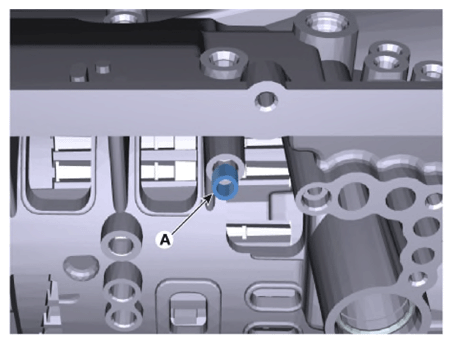

- Check if the pipe seal (A) is inserted on the marked area before mounting the valve body assembly.
- Refill the automatic transmission with fluid.
(Refer to Hydraulic System - "FLUID ")
