Repair Procedures: Removal

  1. Turn the ignition switch OFF and disconnect the battery negative (-) terminal.

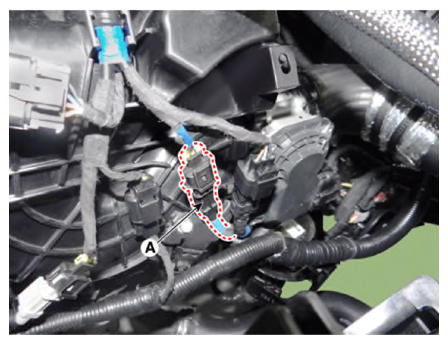

  2. Disconnect the crankshaft position sensor connector (A).
    G12915401Courtesy of KIA MOTORS AMERICA, INC.
  3. Remove the engine room under cover,

    (Refer to Engine Mechanical System - "ENGINE ROOM UNDER COVER ")

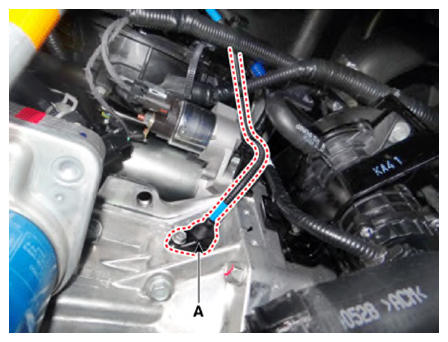

  4. Remove the sensor (A) by loosening the mounting bolt.
    G12915402Courtesy of KIA MOTORS AMERICA, INC.
