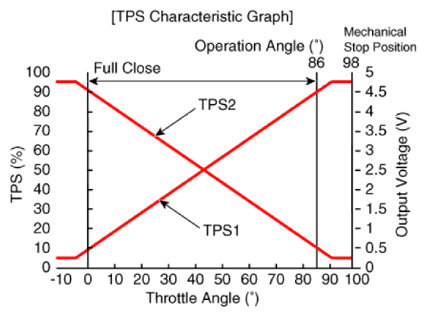

ETC (Electronic Throttle Control) System: Specifications: Specification: [TPS2]
ETC (Electronic Throttle Control) System Specifications
| Item |
Opening Percentage (%) |
Output Voltage (V) [Vref = 5V] |
| C.T |
87 - 93 |
4.35 - 4.65 |
| W.O.T |
6 - 11.4 |
0.3 - 0.57 |
 Courtesy of KIA MOTORS AMERICA, INC.
|
