Components Location

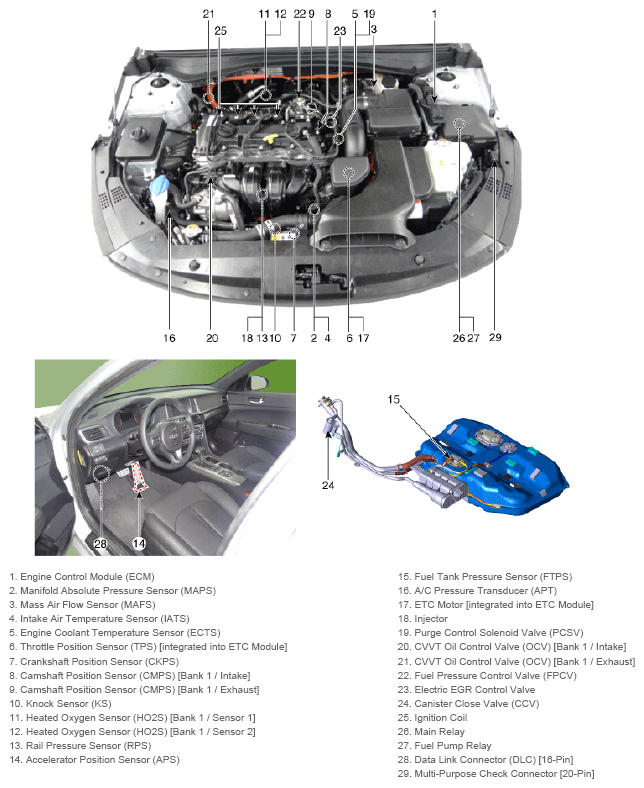

G13388015Courtesy of KIA MOTORS AMERICA, INC.

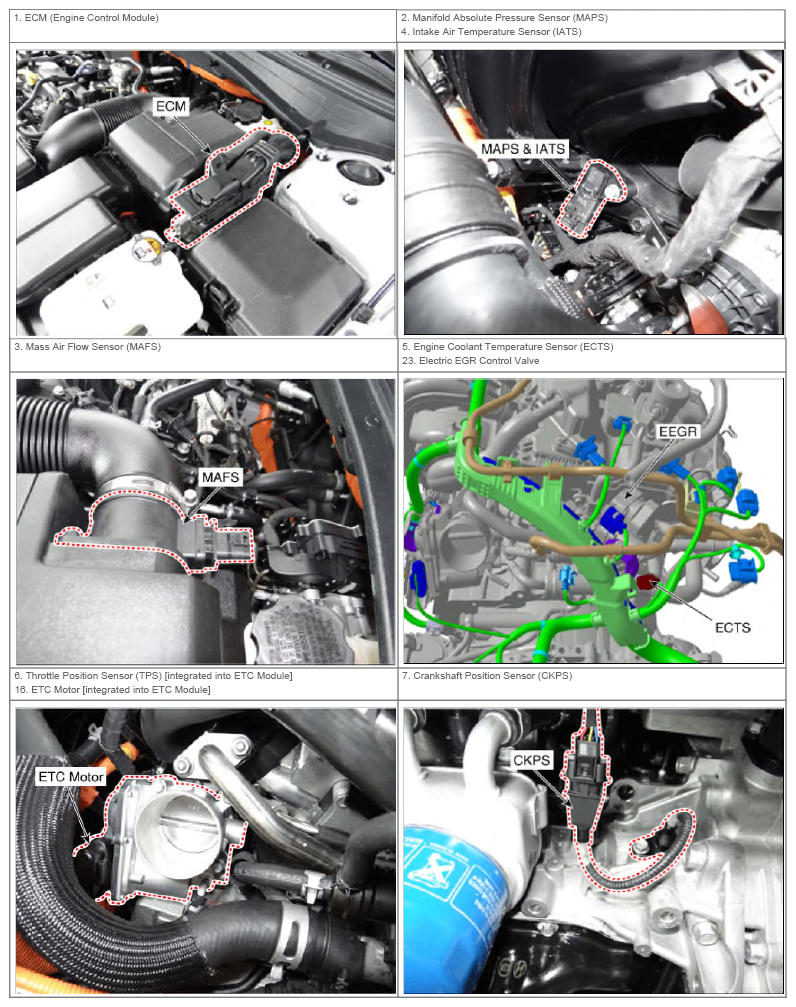

G13388016Courtesy of KIA MOTORS AMERICA, INC.

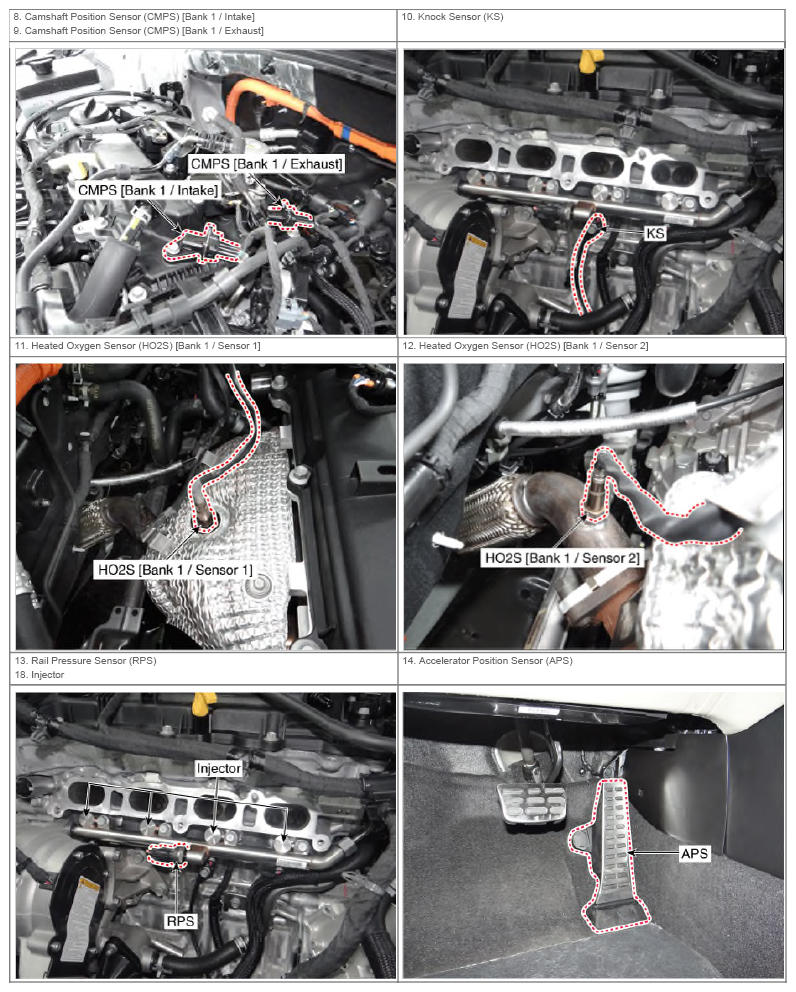

G13388017Courtesy of KIA MOTORS AMERICA, INC.

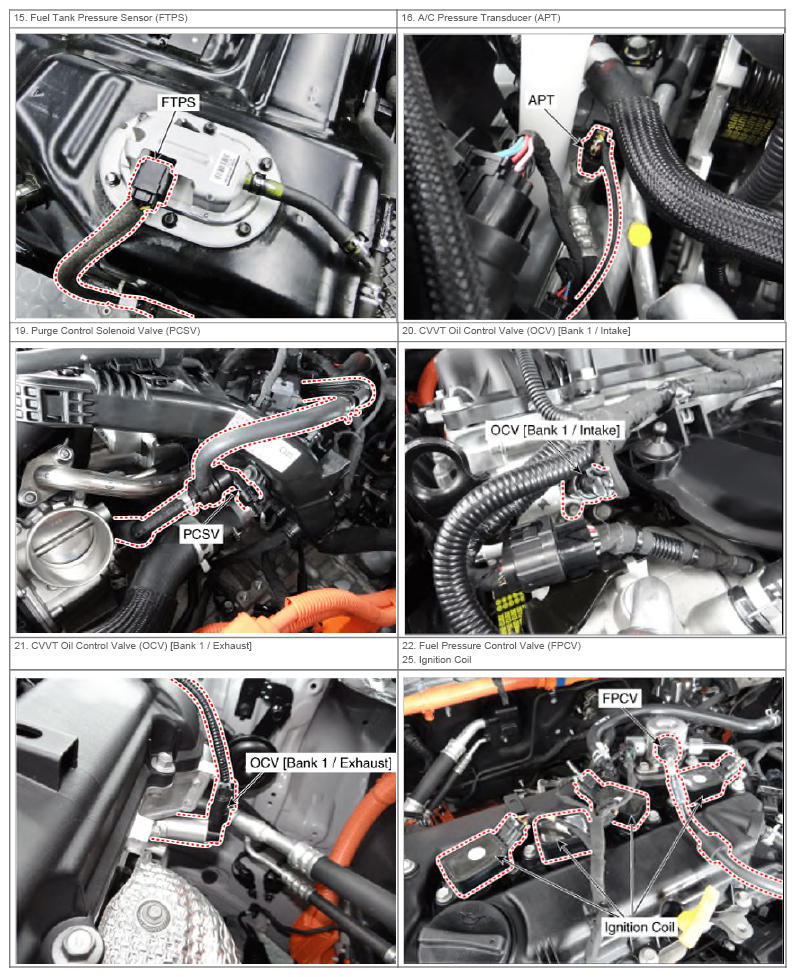

G13388018Courtesy of KIA MOTORS AMERICA, INC.

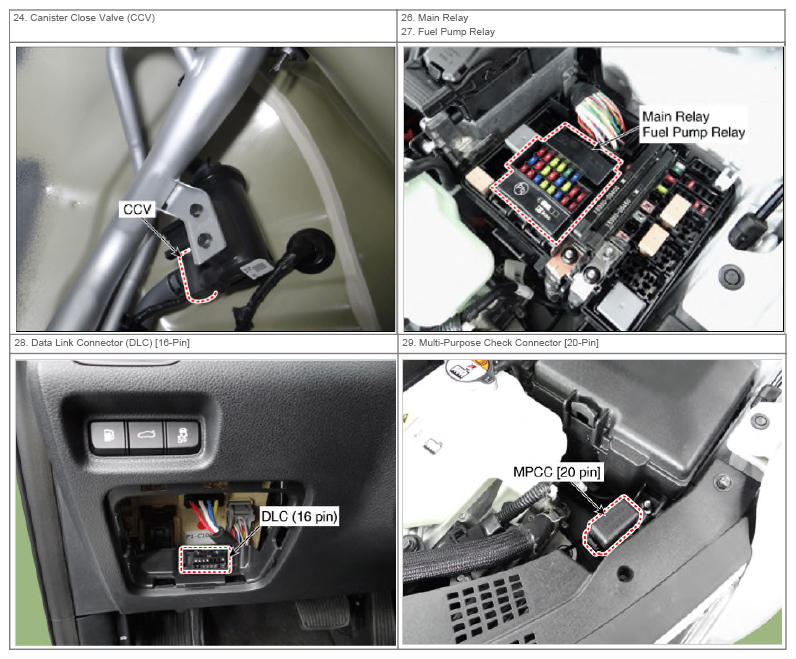

G13388019Courtesy of KIA MOTORS AMERICA, INC.
