Repair Procedures: Removal
- Turn the ignition switch OFF and disconnect the battery negative (-) terminal.
- Remove the engine room under cover.
(Refer to Engine Mechanical System - "ENGINE ROOM UNDER COVER ")

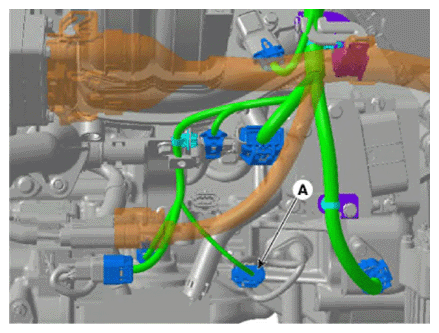

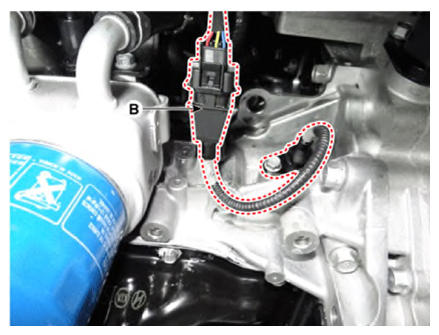

- Disconnect the crankshaft position sensor connector (A) and remove the sensor (B) after removing the installation bolt.
