Repair Procedures: Removal

Remove the air duct and air cleaner.
(Refer to Engine Mechanical System - "AIR CLEANER ")

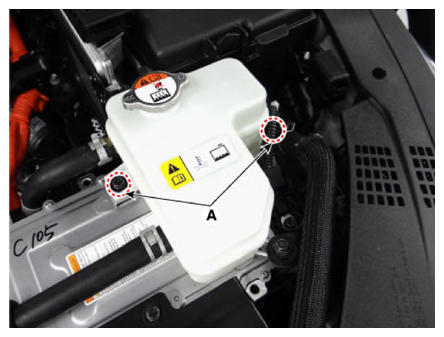

Remove the reservoir mounting bolts (A).
Reservoir mounting bolt:

3.9 - 5.9 N.m (0.4 - 0.6 kgf.m, 2.9 - 4.3 lb.ft)

Courtesy of KIA MOTORS AMERICA, INC.
Disconnect the ECM connector (A).

Courtesy of KIA MOTORS AMERICA, INC.

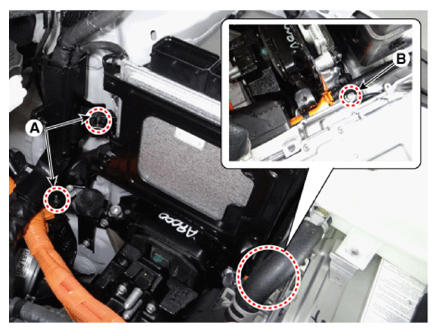

Remove the ECM bracket assembly after loosening the mounting nuts (A) and bolts (B).
ECM bracket assembly mounting nut/bolt:

9.8 - 11.8 N.m (1.0 - 1.2 kgf.m, 7.2 - 8.7 lb.ft)

Courtesy of KIA MOTORS AMERICA, INC.
