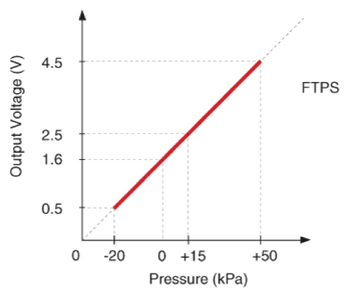

Fuel Tank Pressure Sensor (FTPS): Specifications: Specification
Pressure
[kPa (kgf/cm
2
, psi)]
Output Voltage (V)
-20
0.5
0
1.6
15
2.5
50
4.5
