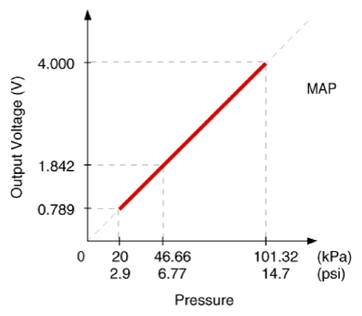

Manifold Absolute Pressure Sensor (MAPS): Specifications: Specification

Pressure
[kPa (kgf/cm2 , psi)]		 Output Voltage (V)
20.0 (0.20, 2.9) 0.79
46.7 (0.47, 6.77) 1.84
101.3 (1.03, 14.7) 4.0
G13388045Courtesy of KIA MOTORS AMERICA, INC.
