Repair Procedures: Removal
- Turn the ignition switch OFF and disconnect the battery negative (-) terminal.

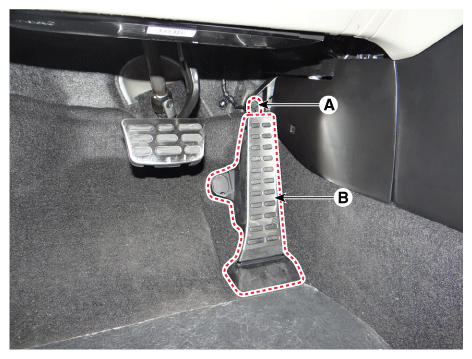

- Disconnect the accelerator position sensor connector (A).
- Remove the accelerator position sensor (B) after loosening the mounting bolts.
Accelerator pedal sensor mounting bolt:
8.8 -13.7 N.m (0.9 - 1.4 kgf.m, 6.5 - 10.1 lb.ft)
