Repair Procedures: Removal

Turn the ignition switch OFF and disconnect the battery negative (-) cable.
Disconnect the CVVT oil control valve connector (A).
Remove the installation bolt (B), and then remove the valve from the engine.
CVVT oil control valve mounting bolt:

9.8 -11.8 N.m (1.0 - 1.2 kgf.m, 7.2 - 8.7 lb.ft)

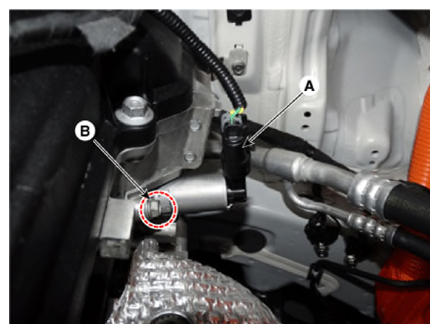

[Bank 1/Intake]

Courtesy of KIA MOTORS AMERICA, INC.

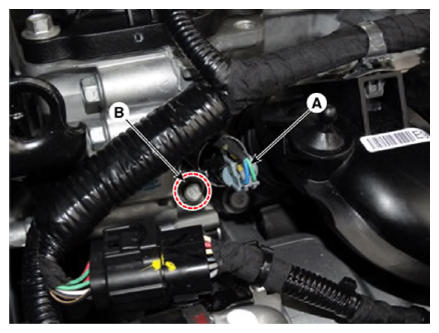

[Bank 1/Exhaust]

Courtesy of KIA MOTORS AMERICA, INC.
