Components Location

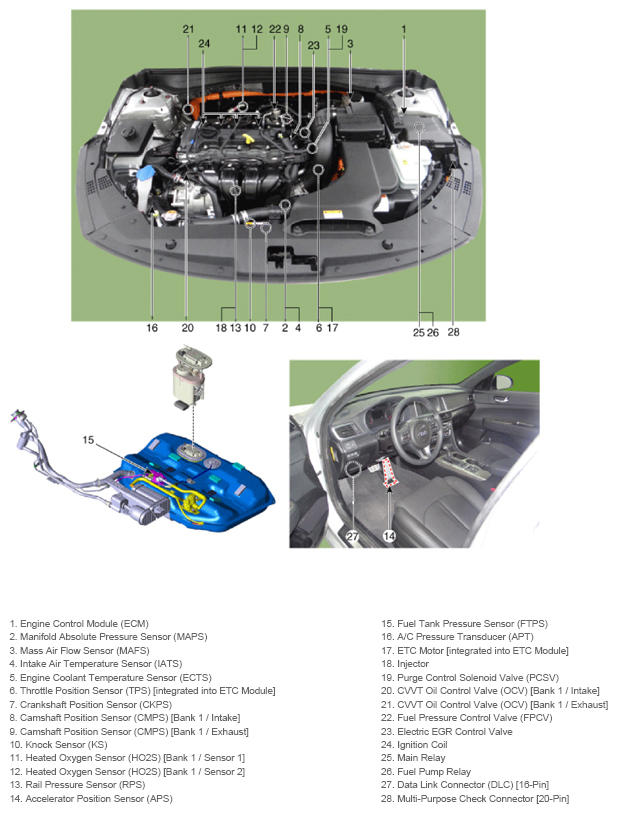

G13361659Courtesy of KIA MOTORS AMERICA, INC.

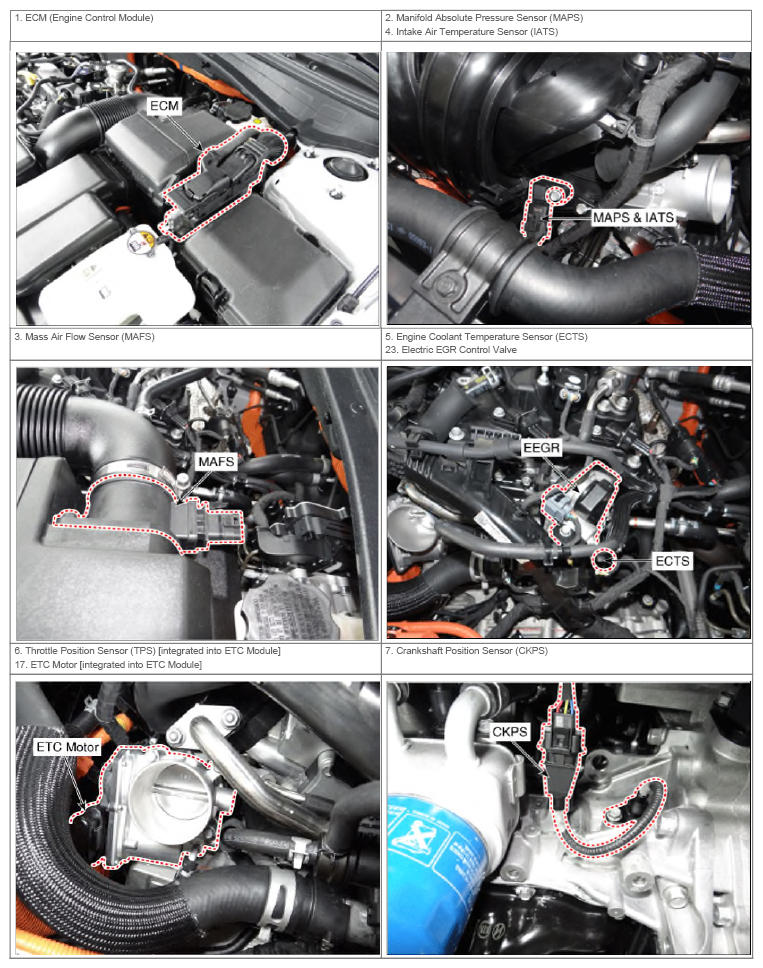

G13361660Courtesy of KIA MOTORS AMERICA, INC.

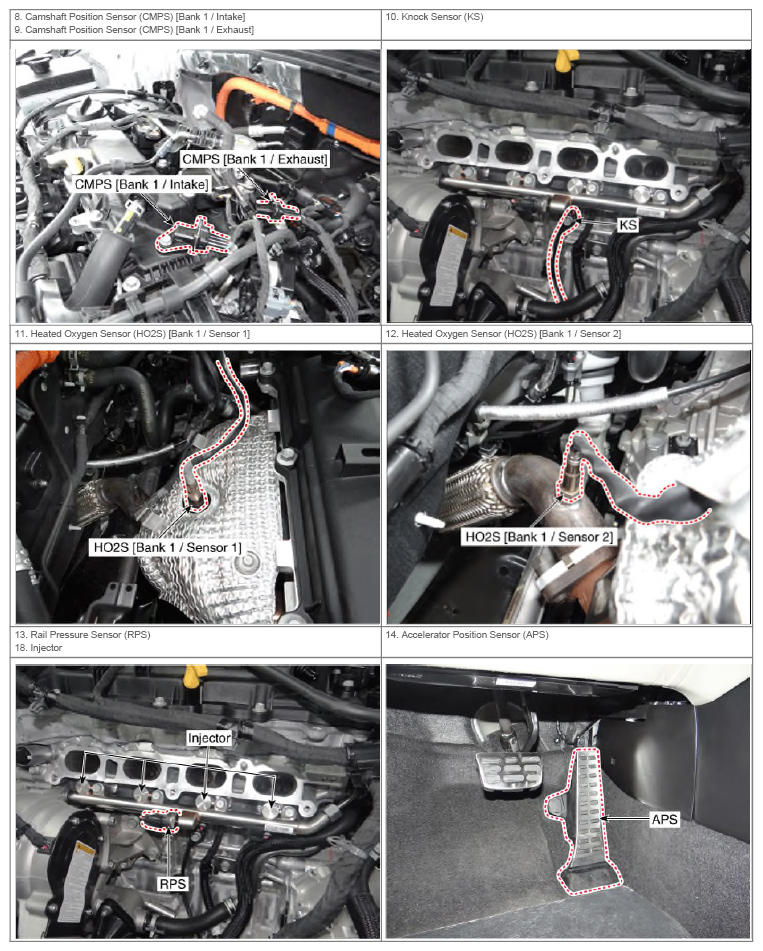

G13361661Courtesy of KIA MOTORS AMERICA, INC.

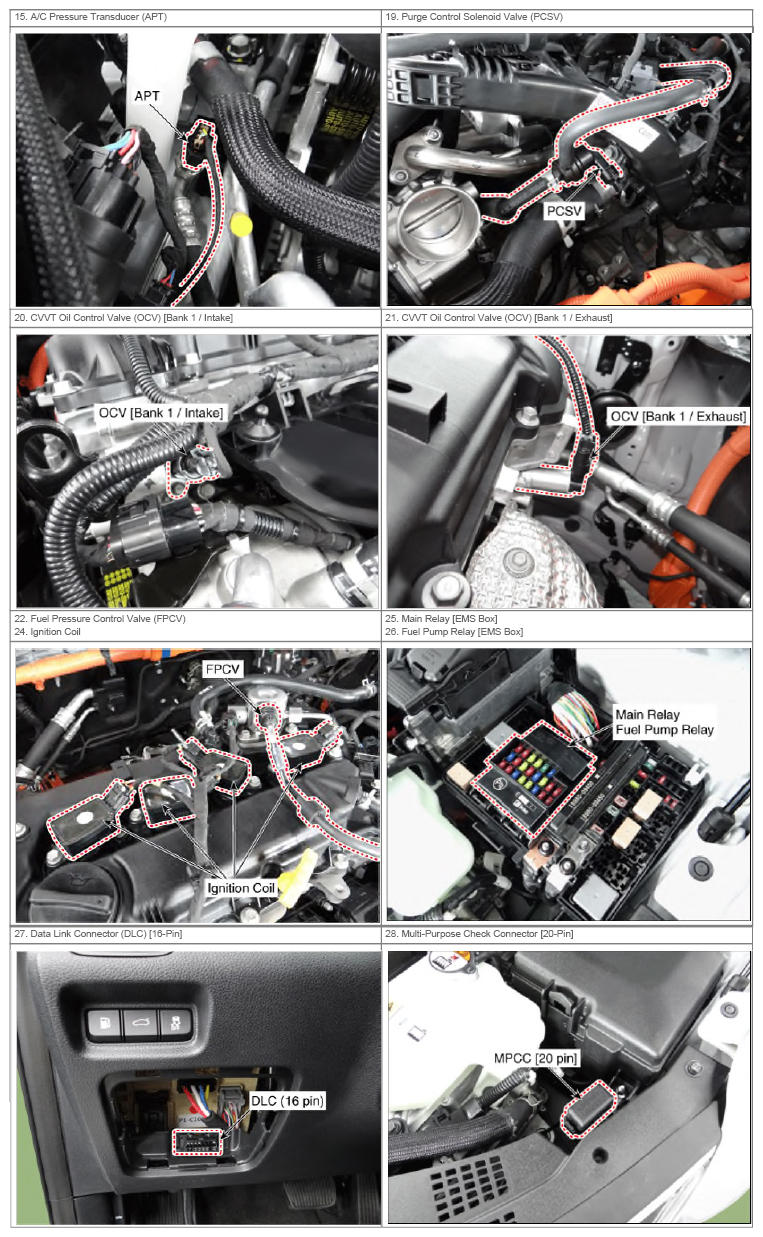

G13361662Courtesy of KIA MOTORS AMERICA, INC.
