Repair Procedures: Removal
- Turn the ignition switch OFF and disconnect the battery negative (-) terminal.
- Remove the engine room under cover.
(Refer to Engine Mechanical System - "ENGINE ROOM UNDER COVER ")

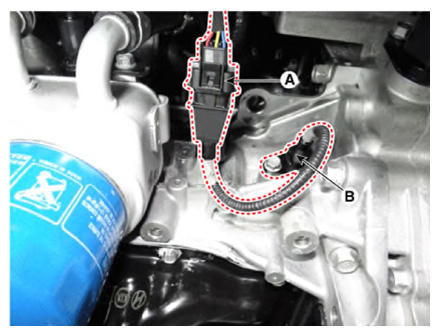

- Disconnect the crankshaft position sensor connector (A) and remove the sensor (B) after removing the installation bolt.
Crankshaft position sensor installation bolt:
7.8-11.8 N.m (0.8 - 1.2 kgf.m, 5.8 - 8.7 lb.ft)
