Connector [B]

Pin No. Description Condition Type Level
1 ECM ground Idle DC -0.3 - 0.5V
2 ECM ground Idle DC -0.3 - 0.5V
3 Battery power (B+) IG OFF DC Max 1.0V
IG ON Battery Voltage (B+)
4 ECM ground Idle DC -0.3 - 0.5V
5 Battery power (B+) IG OFF DC Max 1.0V
IG ON Battery Voltage (B+)
6 Battery power (B+) IG OFF DC Max 1.0V
IG ON Battery Voltage (B+)
7 -
8 Flexray communication [high] signal input - - -
9 -
10 Brake Switch [test] signal input Brake OFF DC Battery Voltage (B+)
Brake ON ax 0.5V
11 -
12 -
13 Electrical load signal input Lamp OFF DC Battery Voltage (B+)
Lamp ON -0.3 - 0.5V
14 Immobilizer communication line - - -
15 -
16 Main Relay control output Relay OFF DC Battery Voltage (B+)
Relay ON -0.3 - 1.2V
17 -
18 -
19 -
20 CVVT Oil Control (OCV) Valve [Bank 1/Intake] control output Idle Pulse High: Battery Voltage (B+)
Low: -0.3 - 1.0V
Frequency: 300Hz
21 -

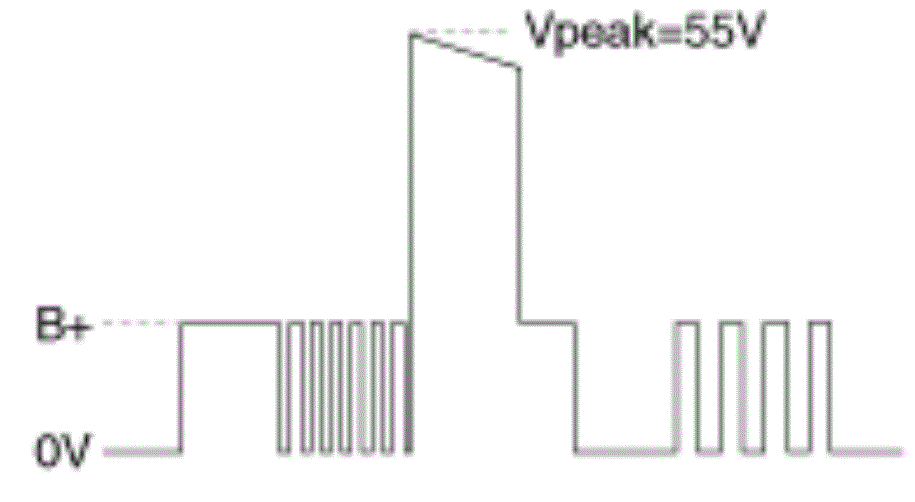

22 Injector (Cylinder #2) [high] control output Engine Run PWM
G13361668Courtesy of KIA MOTORS AMERICA, INC.

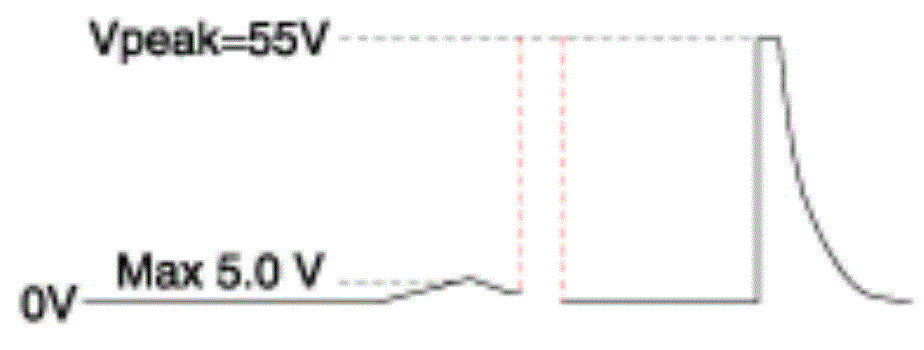

23 Injector (Cylinder #2) [low] control output Engine Run Pulse
G13361669Courtesy of KIA MOTORS AMERICA, INC.
24 -
25 Flexray communication [low] signal input
26 -
27 Brake Switch [lamp] signal input Brake OFF DC Max 0.5V
Brake ON Battery Voltage (B+)
28 -
29 -
30 -
31 -
32 LIN communication signal input
33 Fuel Pump Relay control output Relay OFF DC Battery Voltage (B+)
Relay ON -0.3 - 1.2V
34 -
35 Cooling Fan PWM control output IG OFF PWM Battery Voltage (B+)
IG ON -0.3 - 1.2V
36 -
37 -
38 -

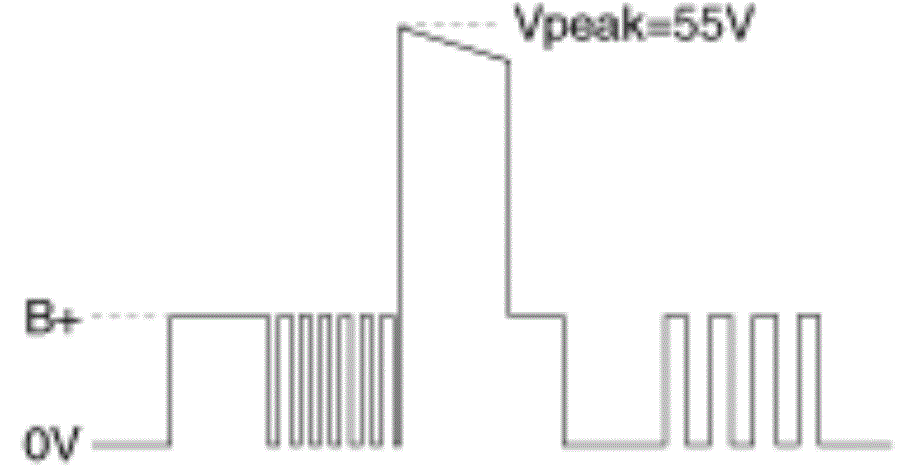

39 Injector (Cylinder #3) [high] control output Engine Run PWM
G13361670Courtesy of KIA MOTORS AMERICA, INC.

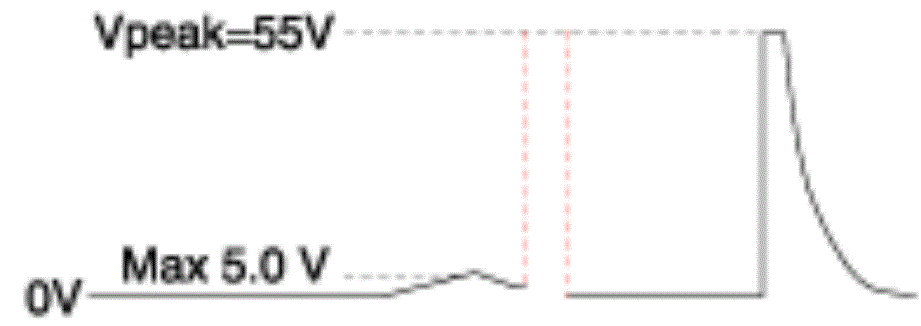

40 Injector (Cylinder #3) [low] control output Engine Run Pulse
G13361671Courtesy of KIA MOTORS AMERICA, INC.
41 Battery power (B+) IG OFF DC Max 1.0V
IG ON Battery Voltage (B+)
42 -
43 -
44 Sensor ground Idle DC -0.3 - 0.5V
45 - - - -
46 Sensor ground Idle DC -0.3 - 0.5V
47 Sensor ground Idle DC -0.3 - 0.5V
48 Sensor ground Idle DC -0.3 - 0.5V
49 -
50 Sensor ground Idle DC -0.3 - 0.5V
51 -
52 -
53 -
54 Vehicle speed signal output Engine Run Frequency Battery Voltage (B+)
Low: -0.3 - 1.0V
Frequency: 21Hz (Idle), 100Hz (3, 000rpm)
55 -

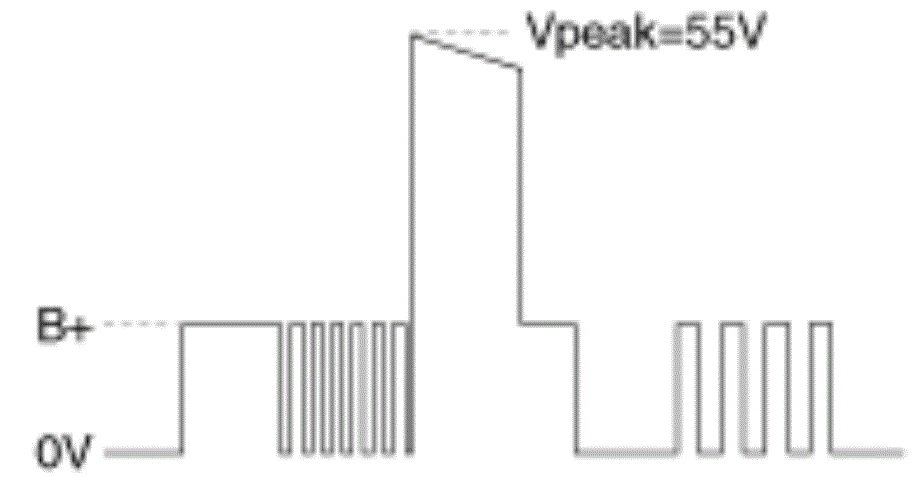

56 Injector (Cylinder #4) [high] control output Engine Run PWM
G13361672Courtesy of KIA MOTORS AMERICA, INC.
57 Injector (Cylinder #4) [low] control output Engine Run Pulse
G13361673Courtesy of KIA MOTORS AMERICA, INC.
58 Heated Oxygen Sensor [Bank 1/Sensor 2] signal input Idle DC Rich: 0.6 - 1.0V
Lean: Max 0.4V
59 H-CAN [low] Recessive Pulse 2.0 - 3.0V
Dominant 2.75 - 4.5V
60 C-CAN [high] Recessive Pulse 2.0 - 3.0V
Dominant 2.75 - 4.5V
61 -
62 -
63 -
64 Accelerator Position Sensor (APS) 2 signal input C.T Analog Max 1.0V
W.O.T 1.5 - 3.0V
65 Accelerator Position Sensor (APS) 1 signal input C.T Analog Max 1.0V
W.O.T Minimum 4.0V
66
67 -
68 -
69 Electric Water Pump (Stand-by) - - -
70 -
71 Purge Control Solenoid Valve (PCSV) control output Inactive Active Pulse High: Battery Voltage (B+)
Low: Max 1.0V
Vpeak: 42.0 - 60.0V
Frequency: 20Hz
72 -

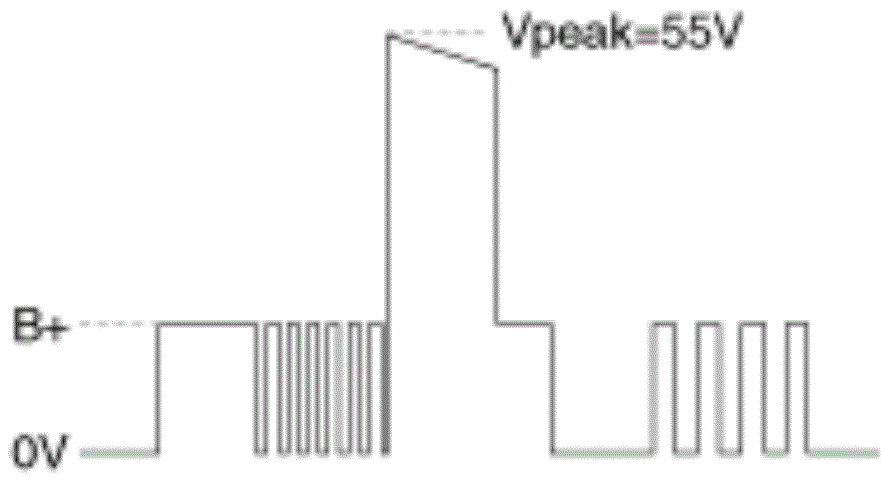

73 Injector (Cylinder #1) [high] control output Engine Run PWM
G13361674Courtesy of KIA MOTORS AMERICA, INC.

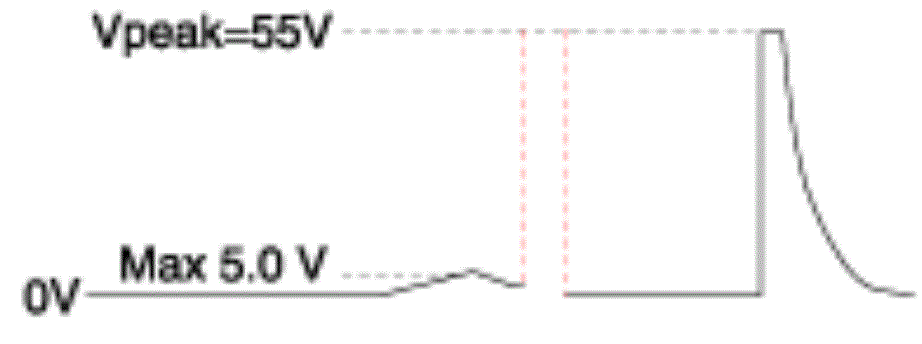

74 Injector (Cylinder #1) [low] control output Engine Run Pulse
G13361675Courtesy of KIA MOTORS AMERICA, INC.
75 Battery power (B+) IG OFF DC Max 1.0V
IG ON Battery Voltage (B+)
76 H-CAN [high] Recessive Pulse 2.0 - 3.0V
Dominant 2.75 - 4.5V
77 C-CAN [low] Recessive Pulse 2.0 - 3.0V
Dominant 2.75 - 4.5V
78 Vehicle speed signal input - - -
79 Sensor power (+5V) IG OFF DC Max 0.5V
IG ON 4.75 - 5.25V
80 -
81 Sensor power (+5V) IG OFF DC Max 0.5V
IG ON 4.75 - 5.25V
82 Sensor power (+5V) IG OFF DC Max 0.5V
IG ON 4.75 - 5.25V
83 -
84 Fuel Tank Level Sender - - -
85 -
86 CVVT Oil Control (OCV) Valve [Bank 1/Exhaust] control output Idle Pulse High: Battery Voltage (B+)
Low: -0.3 - 1.0V
Frequency: 300Hz
87 - - - -
88 Heated Oxygen Sensor (HO2S) [Bank 1/Sensor 1] Heater control output Engine Run Pulse High: Battery Voltage (B+)
Low: -0.3 - 1.0V
Frequency: 8 - 10Hz
Duty: 0 - 100%
89 Heated Oxygen Sensor (HO2S) [Bank 1/Sensor 2] Heater control output Engine Run Pulse High: Battery Voltage (B+)
Low: -0.3 - 1.0V
Frequency: 8 - 10Hz
Duty: 0 - 100%

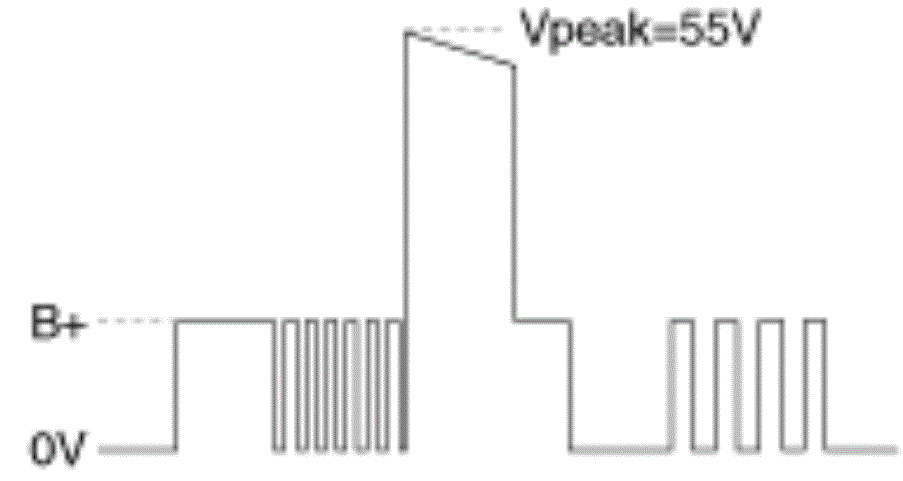

90 Fuel Pressure Control Valve [high] Control Engine Run PWM
G13361676Courtesy of KIA MOTORS AMERICA, INC.

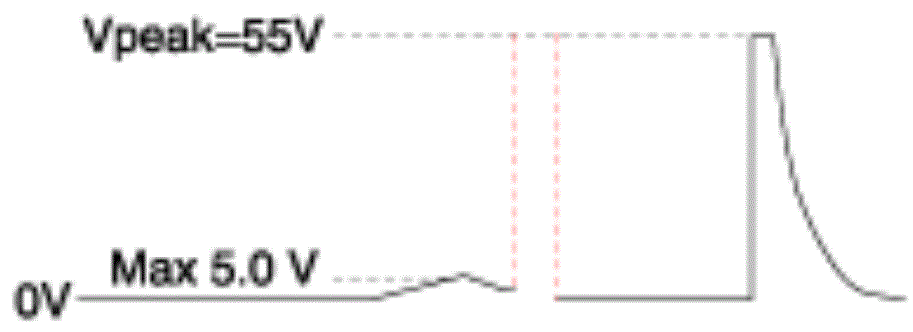

91 Fuel Pressure Control Valve [low] Control Engine Run PWM
G13361677Courtesy of KIA MOTORS AMERICA, INC.
