Manifold Absolute Pressure Sensor (MAPS): Specifications: Specification

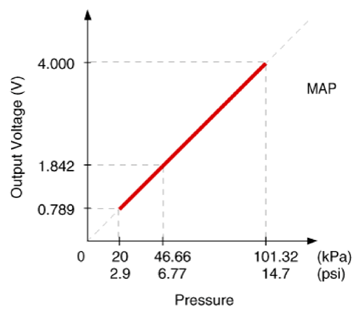

Pressure [kPa (kgf/cm2 , psi)] Output Voltage (V) [Vref = 5V]
20.0 (0.20, 2.9) 0.79
46.7 (0.47, 6.77) 1.84
101.3(1.03, 14.7) 4.0
G13361693Courtesy of KIA MOTORS AMERICA, INC.
