2nd Method

NOTE: The 2nd method should be performed only if the 1st method fails (the misfire-related codes recur).

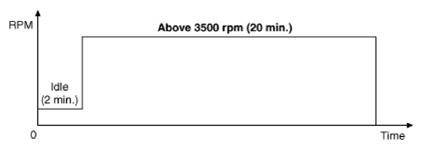

  1. Start the engine and keep the engine running at idle for 2 minutes.
  2. Drive the vehicle for over 20 minutes, keeping the engine speed above 3500 rpm.
    NOTE: If equipped with manual transaxle, shift the gear properly for keeping the engine speed above 3500 rpm.
    G13361558Courtesy of KIA MOTORS AMERICA, INC.
