Repair Procedures: Removal

Remove the ignition coil.
(Refer to Ignition System - "IGNITION COIL ")

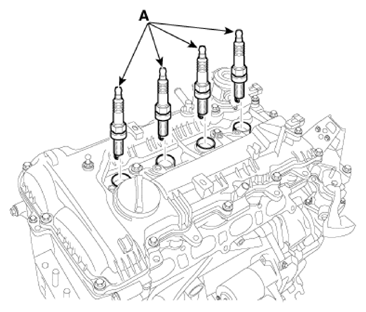

Using a spark plug wrench, remove the spark plug (A).
spark plug:

14.7 - 24.5 N.m (1.5 - 2.5 kgf.m, 10.9 - 18.0 Ib.ft)

Courtesy of KIA MOTORS AMERICA, INC.

NOTE: Be careful that no contaminates enter into spark plug holes.
