Repair Procedures: Installation

  1. Install in the reverse order of removal.
    NOTE:
    • Check that the shift lever and manual control lever are placed in the "N" position.

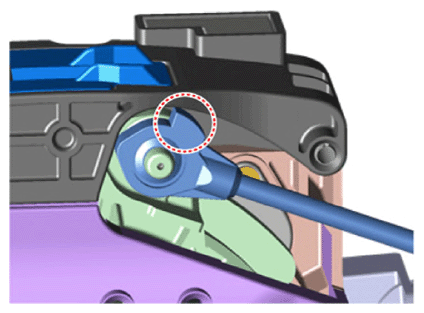

    • Install the shift cable after checking the direction of projection to prevent incorrect assembly.
      G13362138Courtesy of KIA MOTORS AMERICA, INC.

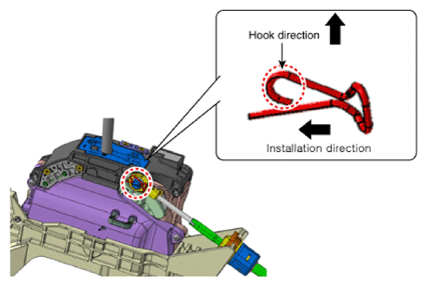

    • [LHD]Mind the installation direction of snap pin and install the snap pin with the hook facing upward.
      G13362139Courtesy of KIA MOTORS AMERICA, INC.

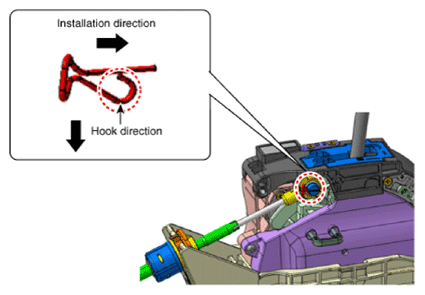

    • [RHD]Mind the installation direction of snap pin and install the snap pin with the hook facing downward.
      G13362140Courtesy of KIA MOTORS AMERICA, INC.
