Components Location

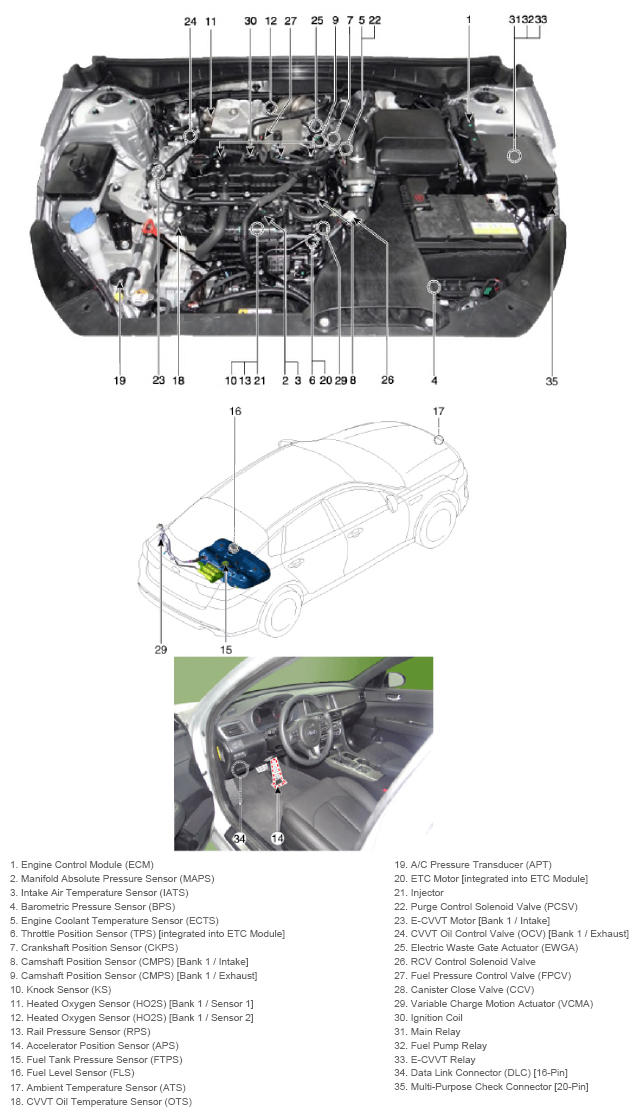

G12922227Courtesy of KIA MOTORS AMERICA, INC.

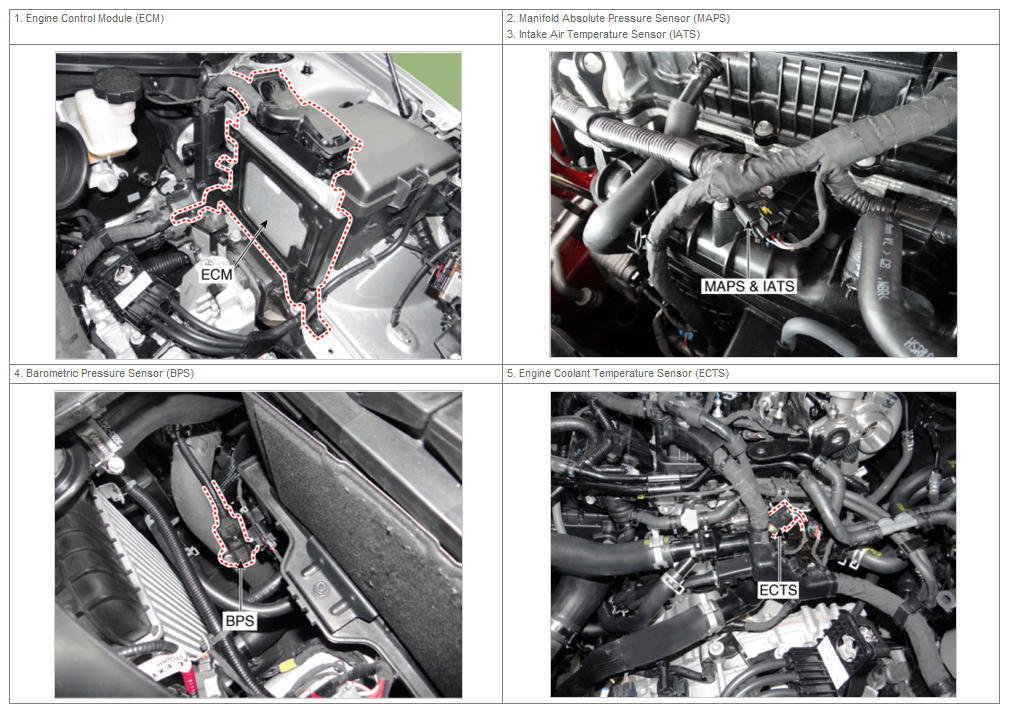

G12922228Courtesy of KIA MOTORS AMERICA, INC.

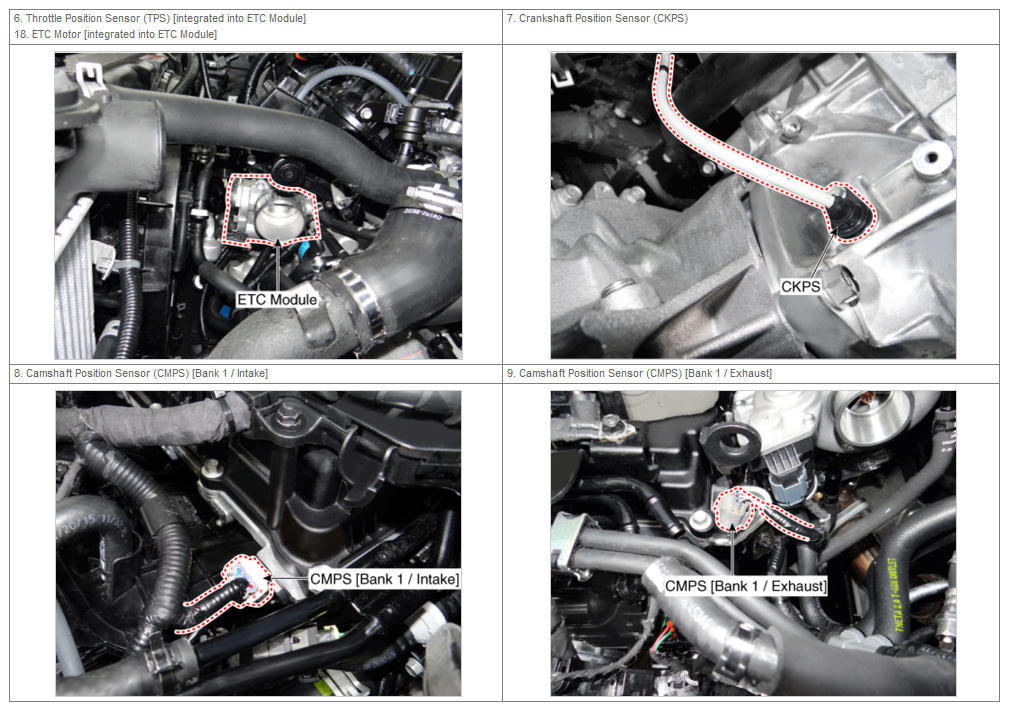

G12922229Courtesy of KIA MOTORS AMERICA, INC.

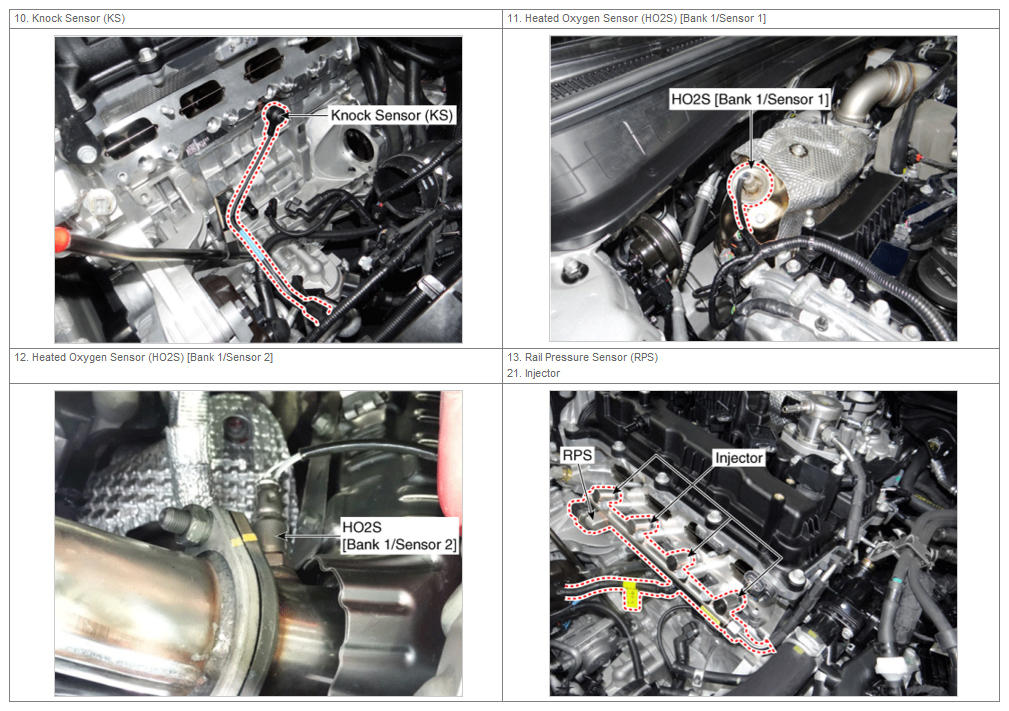

G12922230Courtesy of KIA MOTORS AMERICA, INC.

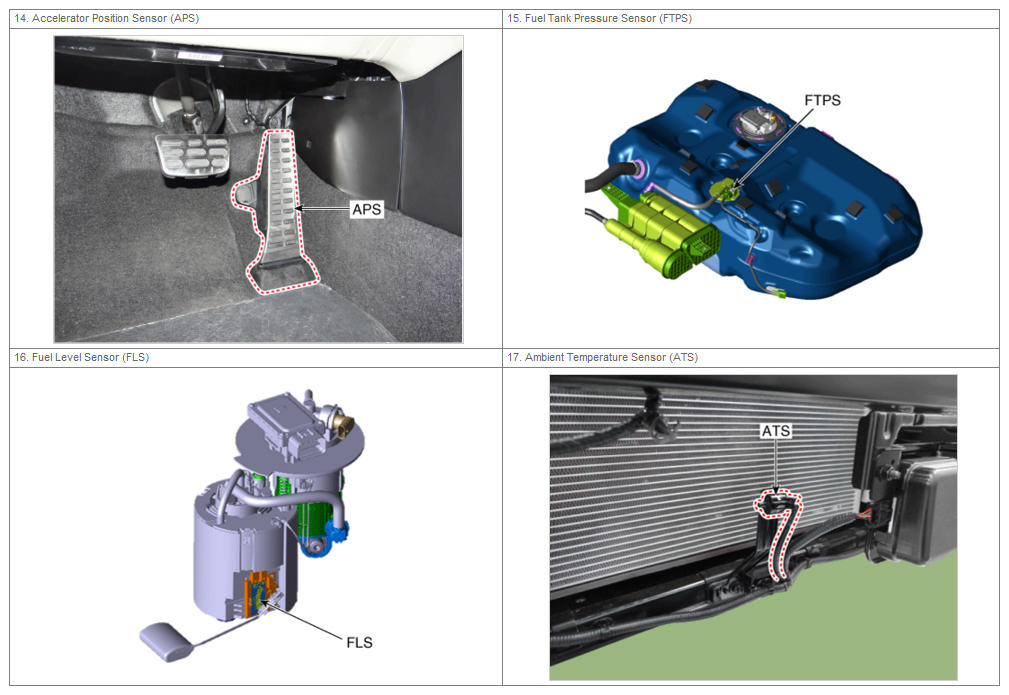

G12922231Courtesy of KIA MOTORS AMERICA, INC.

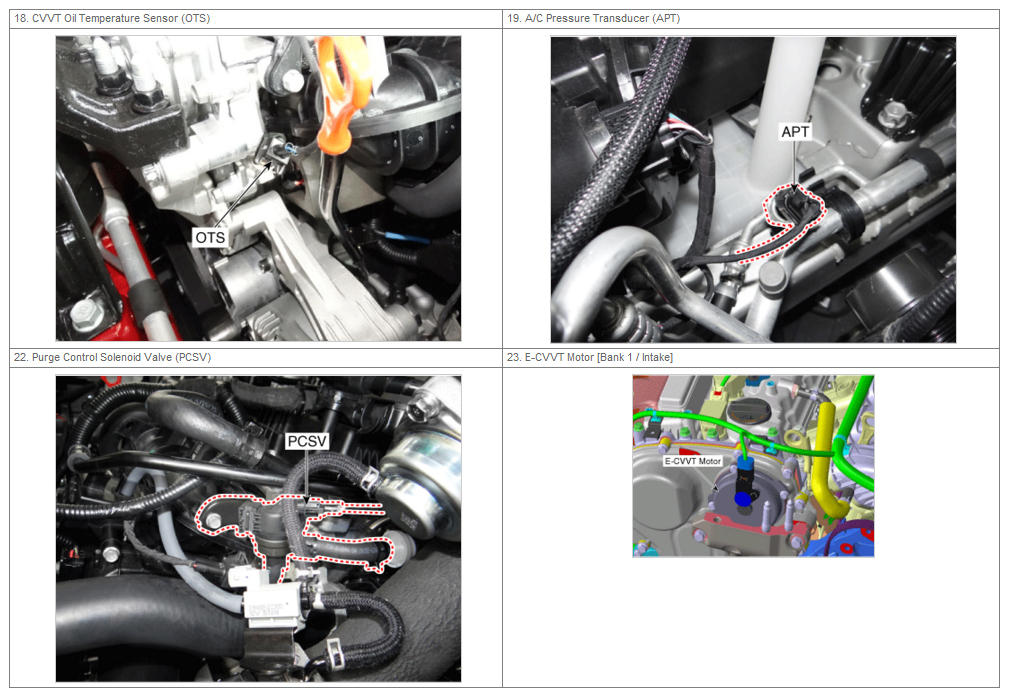

G12922232Courtesy of KIA MOTORS AMERICA, INC.

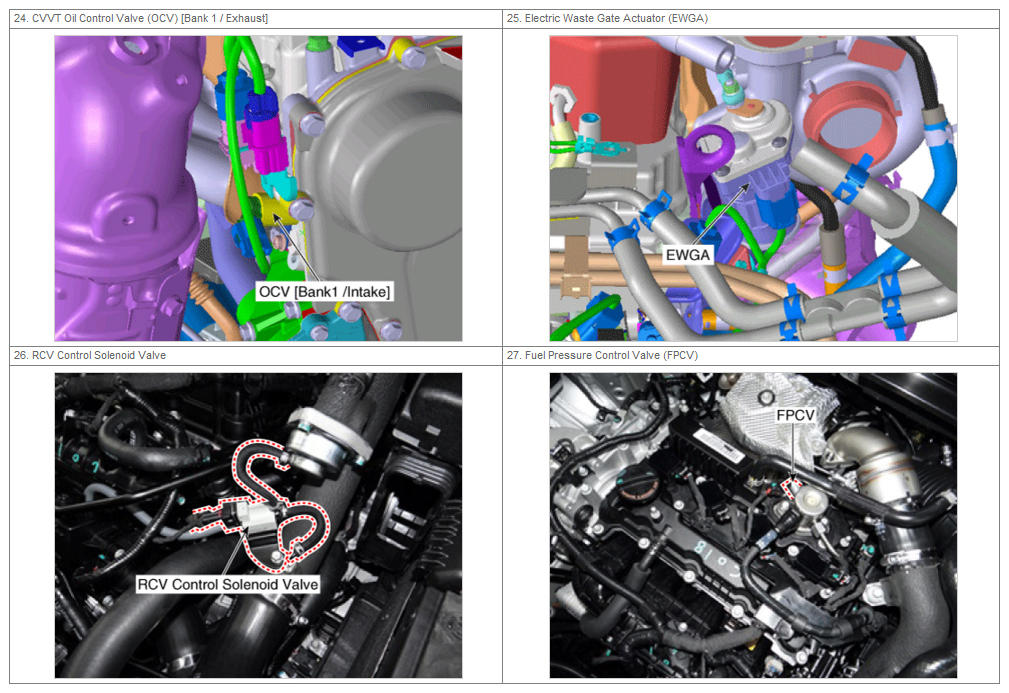

G12922233Courtesy of KIA MOTORS AMERICA, INC.

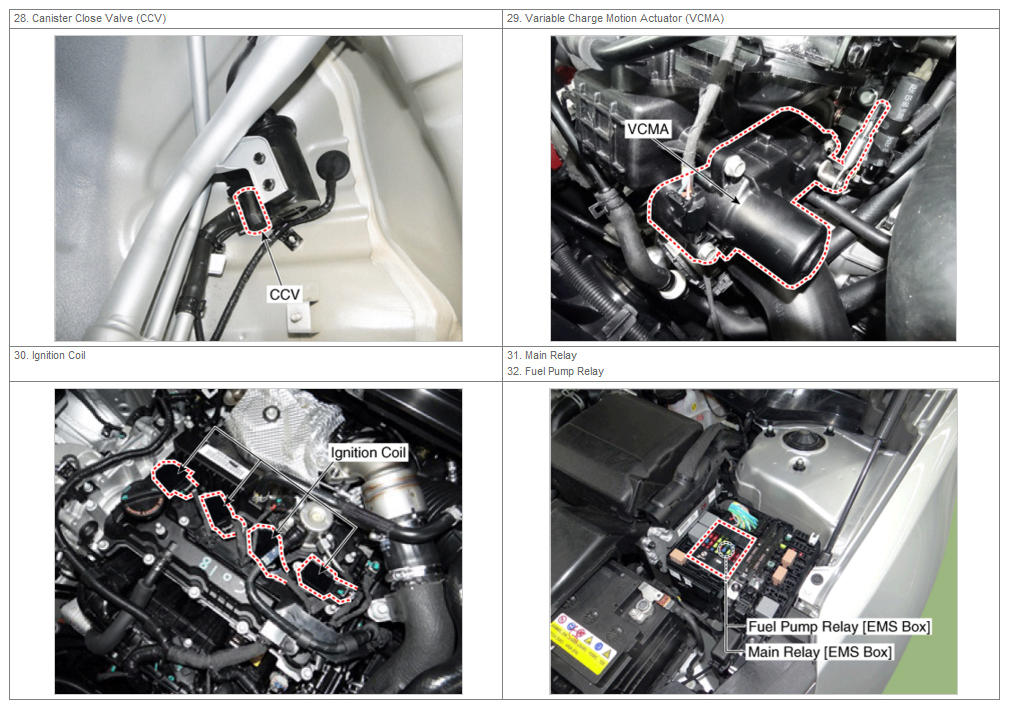

G12922234Courtesy of KIA MOTORS AMERICA, INC.

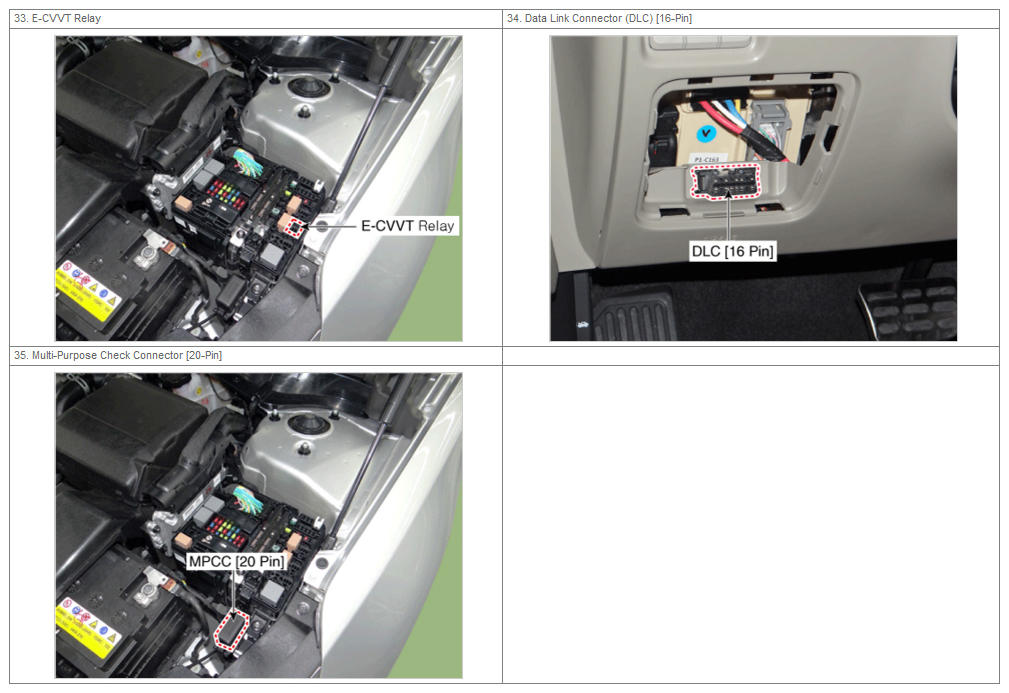

G12922235Courtesy of KIA MOTORS AMERICA, INC.
