Repair Procedures: Removal
- Turn the ignition switch OFF and disconnect the battery negative (-) terminal.
- Remove the battery.
(Refer to "BATTERY ")
- Remove the air cleaner.
(Refer to "AIR CLEANER ")

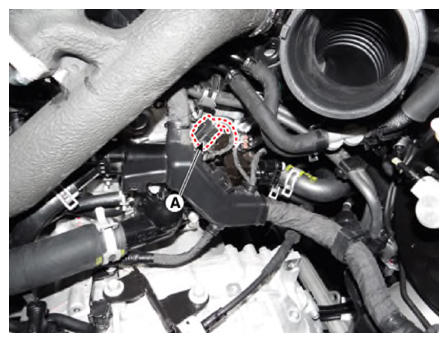

- Disconnect the engine coolant temperature sensor connector (A).

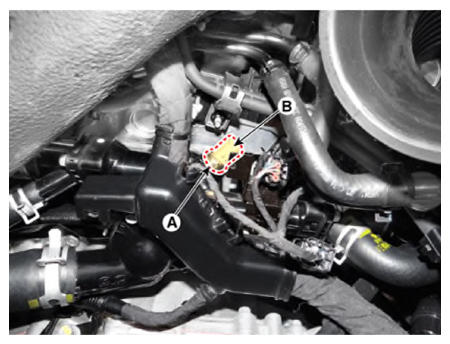

- Remove the spring clip (A), and then pull the sensor from the water temperature control assembly.
CAUTION:
Note that engine coolant may be flowed out from the water temperature control assembly when removing the sensor.
