Repair Procedures: Removal

Release the residual pressure in fuel line.
(Refer to "RELEASE RESIDUAL PRESSURE IN FUEL LINE ")
Turn the ignition switch OFF and disconnect the battery negative (-) terminal.
Remove the intake manifold.
(Refer to "INTAKE MANIFOLD ")

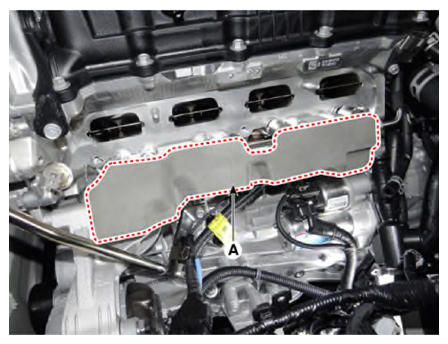

Remove the delivery pipe foam (A).

Courtesy of KIA MOTORS AMERICA, INC.

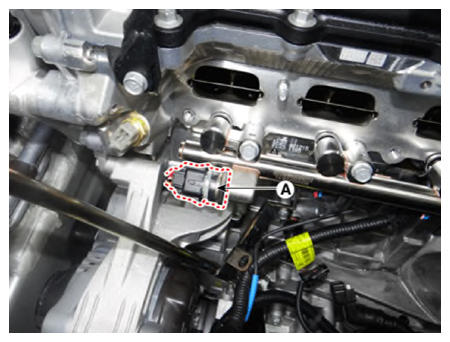

Disconnect the rail pressure sensor connector, and then remove the sensor (A) from the delivery pipe.

Courtesy of KIA MOTORS AMERICA, INC.
