Repair Procedures: Removal

  1. Turn the ignition switch off and disconnect the battery (-) terminal.
  2. Remove the RCV control solenoid valve.

    (Refer to "RCV CONTROL SOLENOID VALVE ")

  3. Remove the purge control solenoid valve.

    (Refer to "PURGE CONTROL SOLENOID VALVE ")

  4. Disconnect the variable charge motion actuator connector (A).
  5. Remove the variable charge motion actuator mounting bolts (B).

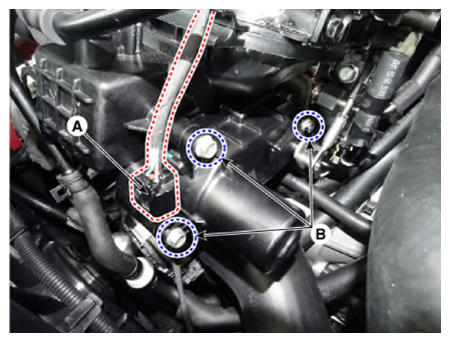

    G12922374Courtesy of KIA MOTORS AMERICA, INC.
  6. Remove VCMA rod clip (A) and connection link between flap (B) using screwdriver.

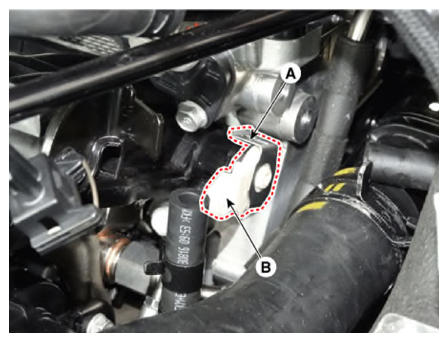

G12922375Courtesy of KIA MOTORS AMERICA, INC.
NOTE: VCMA connection link can be damaged. So, make sure to remove it in a horizontal direction.
Make sure that groove part of the connection link (C) is pointing upward when mounting VCMA.

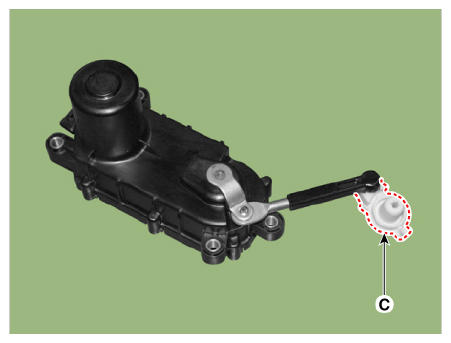

G12922376Courtesy of KIA MOTORS AMERICA, INC.
