Repair Procedures: Removal

Disconnect the negative battery terminal.
Remove the cylinder head cover.
(Refer to Engine Mechanical System - "CYLINDER HEAD COVER ")
When remove the oil control valve, hold the hexagonal portion on the camshaft with a wrench to prevent the camshaft from rotating.
Remove the CVVT oil control valve (A).

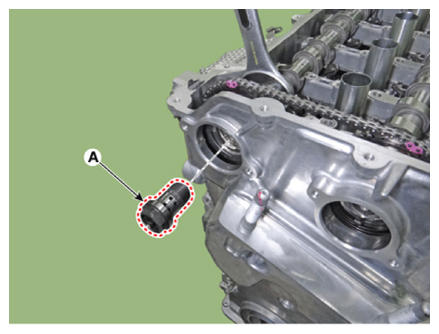

[Intake]

Courtesy of KIA MOTORS AMERICA, INC.

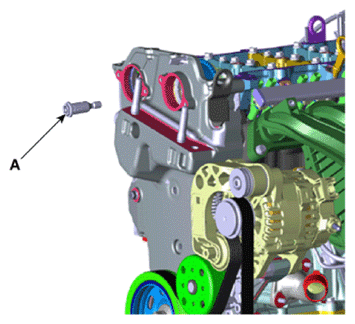

[Exhaust]

Courtesy of KIA MOTORS AMERICA, INC.

NOTE:

To prevent impurities from entering OCV & center bolt, wear rubber gloves.

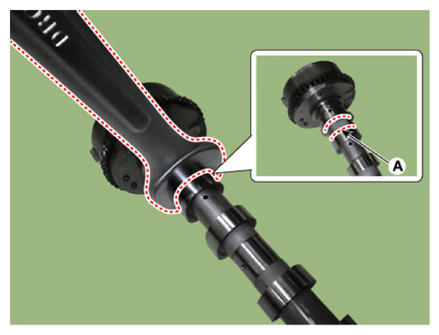

When removing the OCV & center bolt, place a wrench at position (A) to prevent the camshaft from rotating.

Courtesy of KIA MOTORS AMERICA, INC.
