Components & Components Location: Components

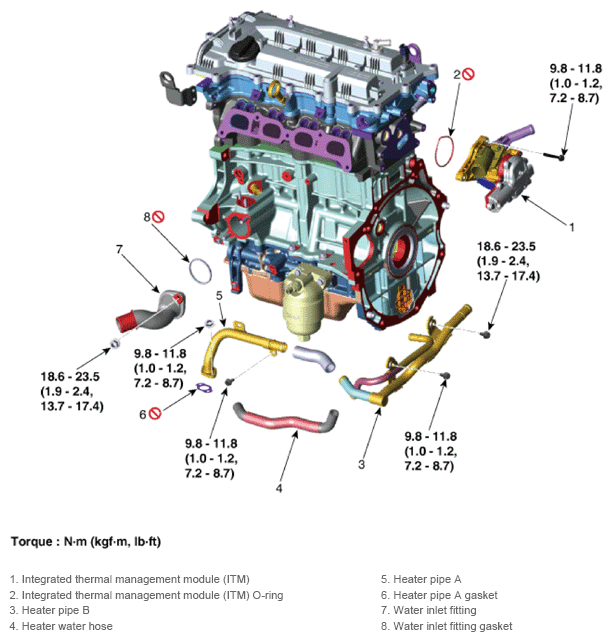

Fig 1: Integrated Thermal Management Module Components With Torque Specification
G13412409Courtesy of KIA MOTORS AMERICA, INC.
