Repair Procedures: Removal

  1. Disconnect the negative battery terminal.

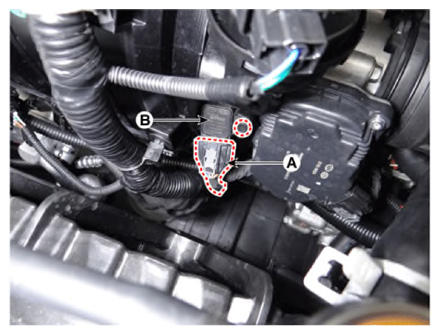

  2. Disconnect the manifold absolute pressure sensor connector (A).
  3. Remove the sensor (B) from the intake manifold after loosening the mounting bolt.

    Tightening torque:

    9.8 - 11.8 N.m (1.0 - 1.2 kgf.m, 7.2 - 8.7 lb.ft)

    G13412334Courtesy of KIA MOTORS AMERICA, INC.
