Repair Procedures: Installation

  1. Install in the reverse order of removal.
NOTE:
  • Always use new gasket.
  • When installing the intake manifold, tighten the bolts and nuts with pre-torque first, and then tighten the bolts and nuts with specified torque in the sequence shown.

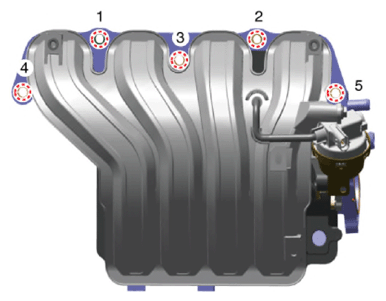

Fig 1: Intake Manifold Bolts Tightening Sequence
G13412407Courtesy of KIA MOTORS AMERICA, INC.
