Repair Procedures: Installation

Install in the reverse order of removal.

NOTE:

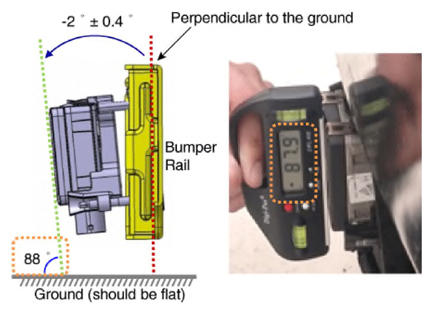

The vertical installation angle of the unit must be within -2° ± 0.4°. (not 0 degree)

* Before installing the bumper onto the vehicle, measure the vertical angle of the unit with a protractor as shown.

Courtesy of KIA MOTORS AMERICA, INC.

Adjust to "target vertical angle" by turning adjusting screw (A) of front radar.

Courtesy of KIA MOTORS AMERICA, INC.

Number of adjustment screw rotation	Correction angle
Number of adjustment screw rotation	Clockwise	Counter clockwise
0.5	+ 0.5°	-0.5°
1	+ 1.0°	- 1.0°
1.5	+ 1.5°	- 1.5°
2	+ 2.0°	- 2.0°
2.5	+ 2.5°	- 2.5°
3	+ 3.0°	- 3.0°
3.5	+ 3.5°	- 3.5°
4	+ 4.0°	- 4.0°
4.5	+ 4.5°	- 4.5°
5	+ 5.0°	- 5.0°

Align the variant coding procedure.
(Refer to Adjustment - "VARIANT CODING ")
Align the smart cruise control radar sensor.
(Refer to Adjustment - "SMART CRUISE CONTROL (SCC) ALIGNMENT ")
