Repair Procedures: Replacement

  1. Remove the front door window glass.

    (Refer to Front Door - "FRONT DOOR WINDOW GLASS ")

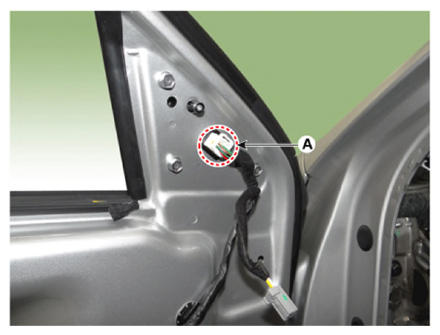

  2. Disconnect the outside rear view mirror connector (A).
    G13305180Courtesy of KIA MOTORS AMERICA, INC.

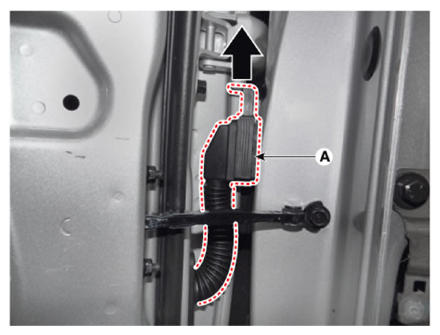

  3. Disconnect the front door main connector (A).
    G13305181Courtesy of KIA MOTORS AMERICA, INC.

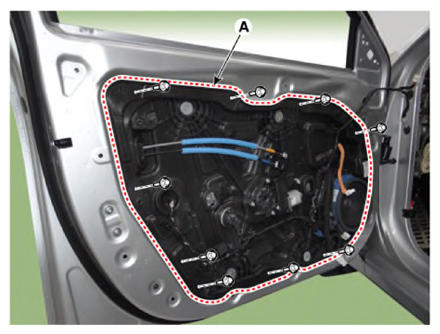

  4. Loosen the mounting bolts and remove the front door module (A).

    Tightening torque:

    7.8 - 11.8 N.m (0.8 - 1.2 Kgf.m, 5.8 - 8.7 lb.ft)

    G13305182Courtesy of KIA MOTORS AMERICA, INC.

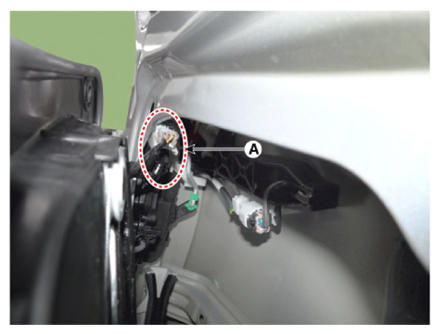

  5. Disconnect the front door latch connector (A).
    G13305183Courtesy of KIA MOTORS AMERICA, INC.

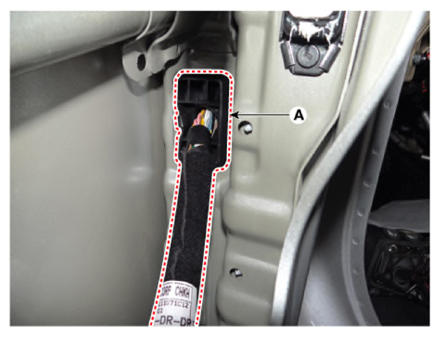

  6. Disconnect the front door main wiring (A).
    G13305184Courtesy of KIA MOTORS AMERICA, INC.

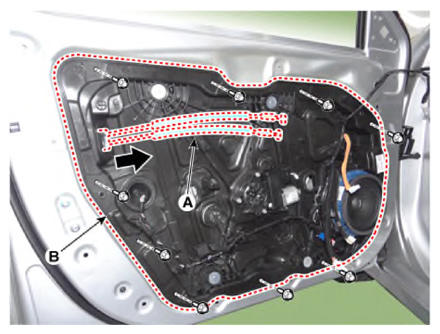

  7. Remove the front door module (B) from the inside handle cable (A) by pulling it in the direction of the arrow
    G13305185Courtesy of KIA MOTORS AMERICA, INC.

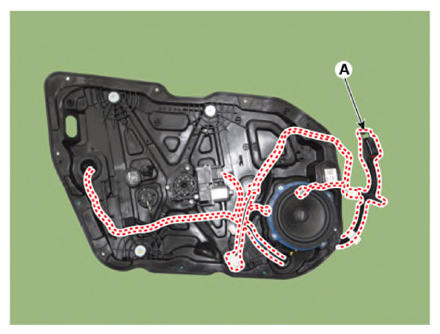

  8. Disconnect the connectors and front door module wiring harness (A).
    G13305186Courtesy of KIA MOTORS AMERICA, INC.
  9. Remove the front speaker.

    (Refer to Body Electrical System - "SPEAKERS ")

  10. Remove the front power window motor.

    (Refer to Body Electrical System - "POWER WINDOW MOTOR ")

  11. Remove the side impact sensor.

    (Refer to Restraint - "SIDE IMPACT SENSOR (SIS) ")

  12. To install, reverse the removal procedure.

    Information

    • Make sure connectors are connected properly and each rod is connected securely.
    • Make sure the door locks/unlocks and opens/closes properly.
