Trunk Antenna

  1. Disconnect the negative battery terminal.
  2. Remove the rear transverse trim.

    (Refer to Body - "REAR TRANSVERSE TRIM ")

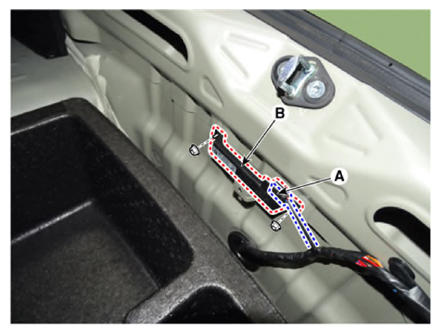

  3. Remove the trunk antenna (B) by loosening the nuts after disconnecting the connector (A).
    G13306306Courtesy of KIA MOTORS AMERICA, INC.
