Trunk Open Switch

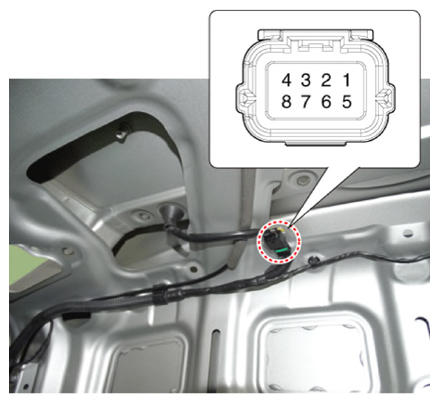

  1. Check for continuity between the trunk open switch terminals.
    G13306297Courtesy of KIA MOTORS AMERICA, INC.

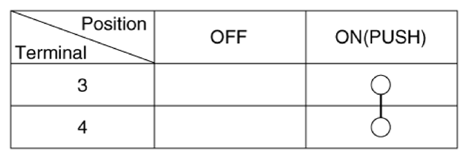

  2. If continuity is not specified, inspect the switch.
    G13306298Courtesy of KIA MOTORS AMERICA, INC.
