Integrated Body Control Unit (IBU)
NOTE:
Take care not to bend or scratch the trim and panels.
- Remove the crash pad lower panel.
(Refer to Body - "CRASH PAD LOWER PANEL ")

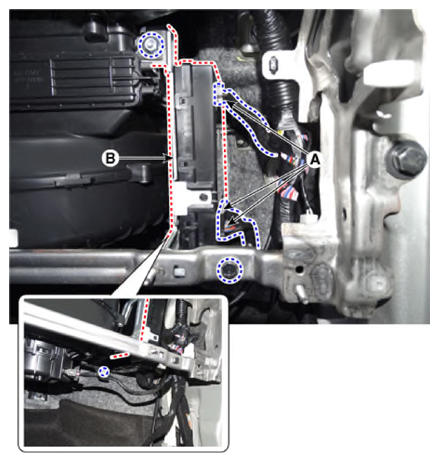

- Remove the IBU (B) by loosening the mounting bolt and nut after disconnecting the connector (A).
