Operation For Each Function Of Button Starting

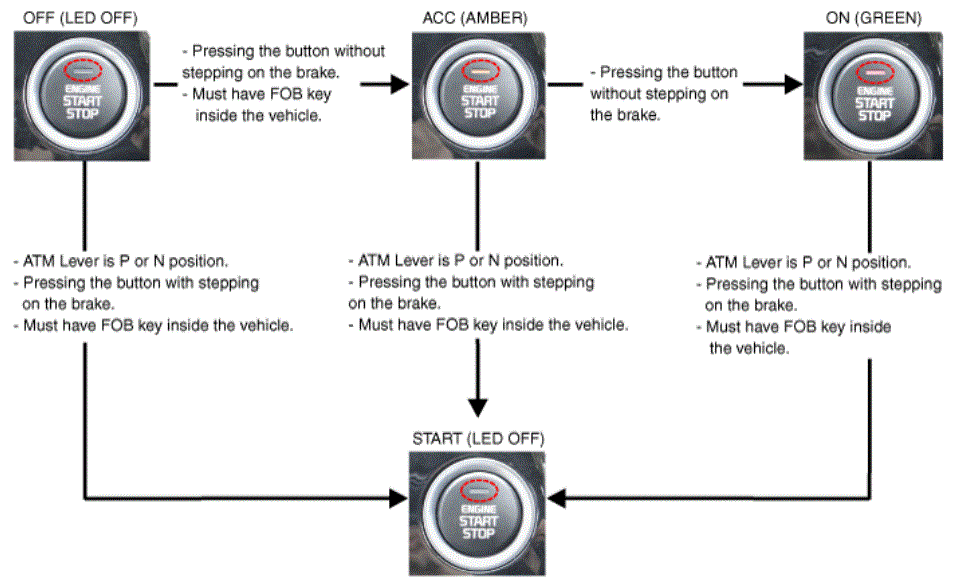

• The electric power state changes within the range of OFF →ACC→IGN→OFF by pressing the button without stepping on the brake (Or with stepping on the brake) inside the car with FOB key (However, When the gear is not in P, the power repeatedly changes between ACC and IGN. Converting to OFF is impossible.)
• The ignition is on when the button is pressed with stepping on the brake at P/N position with FOB key.

Courtesy of KIA MOTORS AMERICA, INC.

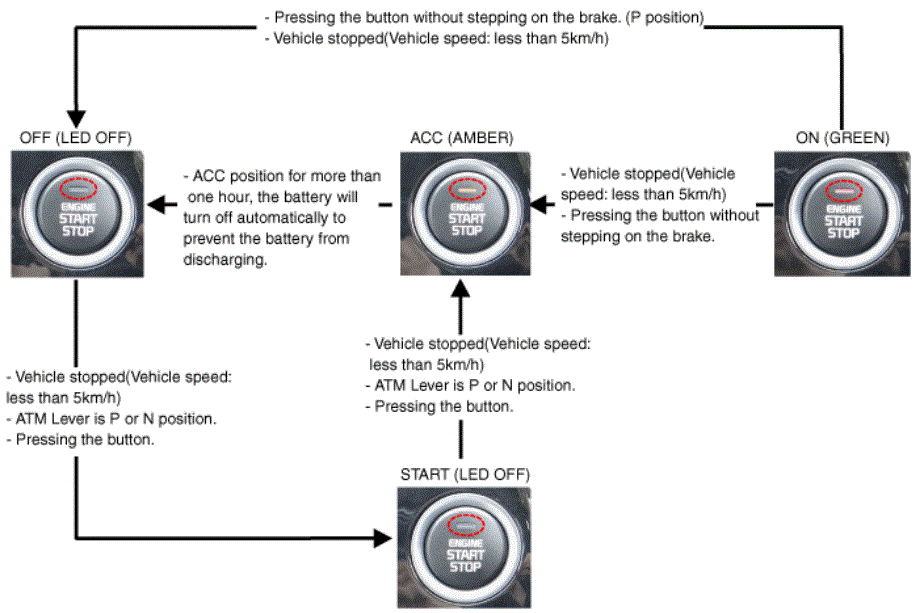

• The ignition OFF is possible in the state of vehicle stop. (The ignition OFF state is possible regardless of the ATM lever position.)
• The lever shall be shifted for parking in gear N by pressing the ATM lever release button after electric power off in P.

Courtesy of KIA MOTORS AMERICA, INC.

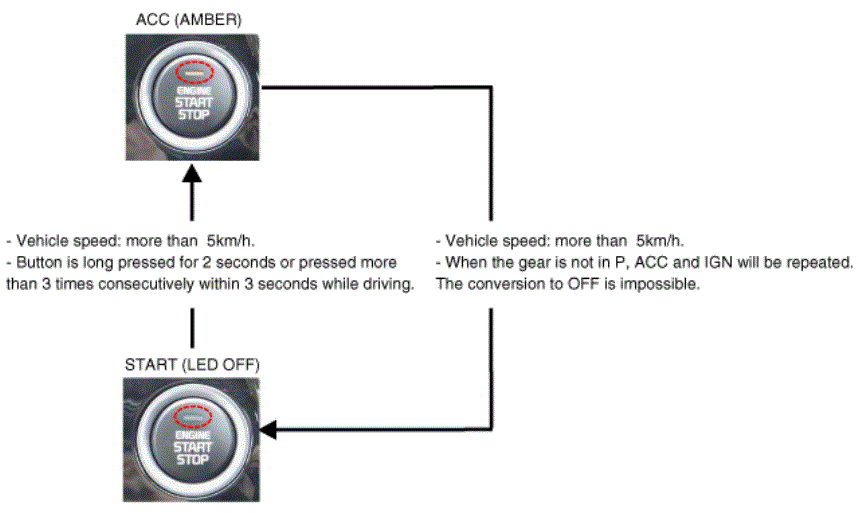

• This method is used to force ignition off in case of fuel leakage when the vehicle is overturned or of emergency (e.g. failure in accelerator pedal return.)
• The engine is off and returned to the ACC state when the button is pressed for 2 seconds and more than 3 times successively within 3 seconds during driving. The restarting is available for next 30 seconds regardless of FOB key and the electric power is changed through OFF → ACC→IGN→OFF by pressing the button without stepping on the brake (or with stepping on the brake) inside the car with FOB key. (However, when it is not in P position, ACC↔IGN is repeated. The conversion to OFF is impossible.)

Courtesy of KIA MOTORS AMERICA, INC.

The starting is available when the brake pedal is stepped on within 0.5 second after pressing the start button in engine OFF state.

• Electric power OFF: LED OFF
• Electric power ACC state: Amber LED ON
• Electric power ON: Green LED ON
• During cranking: Maintaining the previous LED ON state before cranking
• Starting ON state: LED OFF
