Circuit Diagram
>>
Standard Window Motor
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.

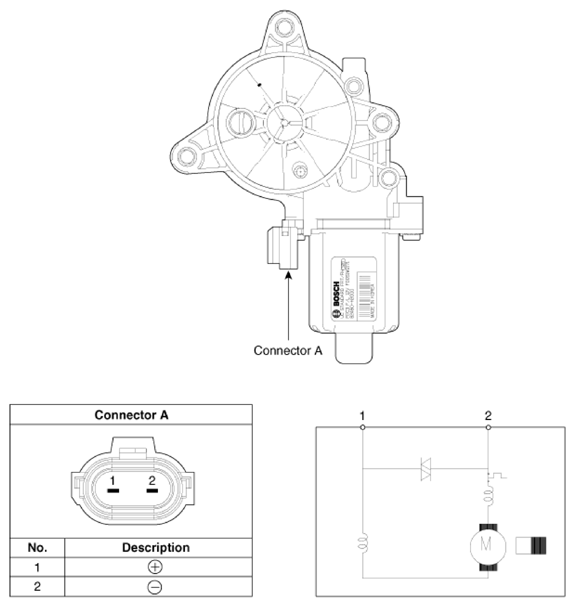

Standard Window Motor
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
