Driver Power Window Switch

  1. Disconnect the negative (-) battery terminal.
  2. Remove the driver front door trim.

    (Refer to Body - "FRONT DOOR TRIM ")

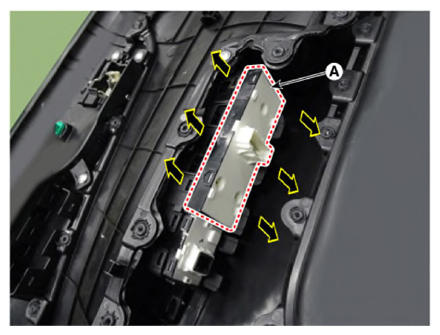

  3. Remove the power window switch assembly (A) by pulling out both ends of the switch holders.
    G13306168Courtesy of KIA MOTORS AMERICA, INC.
