Repair Procedures: Removal

CAUTION: Put on gloves to protect your hands.

NOTE: Use seat covers to avoid damaging any surfaces.

Remove the roof side molding.
(Refer to Body Side Molding - "ROOF SIDE MOLDING ")
Remove the package tray trim.
(Refer to Interior Trim - "REAR PACKAGE TRAY TRIM ")
Spread the WD - 40 on the side of rear window glass.

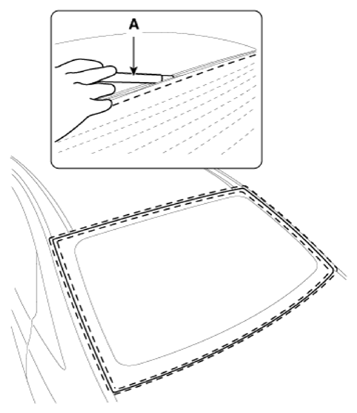

Cut out the adhesive using the cutter (A).
Information

Please use the cutter with a blade length between 8 - 12 inches.

Courtesy of KIA MOTORS AMERICA, INC.

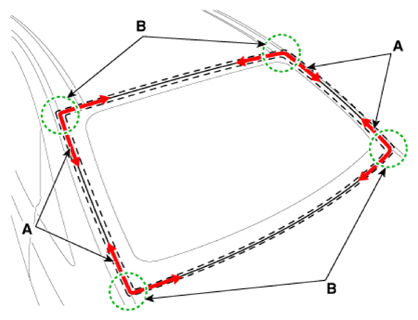

Cut off the sealant on the edge (B) while pulling the piano wire (A) left and right.
CAUTION:
- Put on gloves to protect your hands.
- Heat may occur when working on the wires. Be careful not to burn your hands.
- Be careful not to disconnect the piano wire.
Courtesy of KIA MOTORS AMERICA, INC.

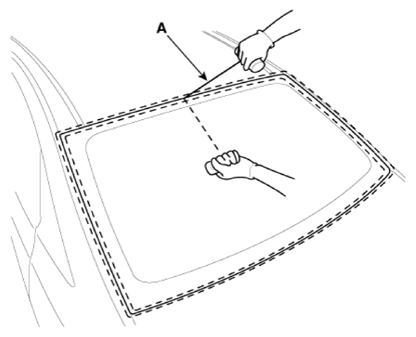

If a piano wire is visible inside the chassis, pull the piano wire (A) line inside.

Courtesy of KIA MOTORS AMERICA, INC.
Cut off the sealant on (A - A), (B - B), (C - C), while pulling a piano wire (A) left and right.
CAUTION:
- Put on gloves to protect your hands.
- Heat may occur when working on the wires. Be careful not to burn your hands.
- Be careful not to disconnect the piano wire.
Courtesy of KIA MOTORS AMERICA, INC.

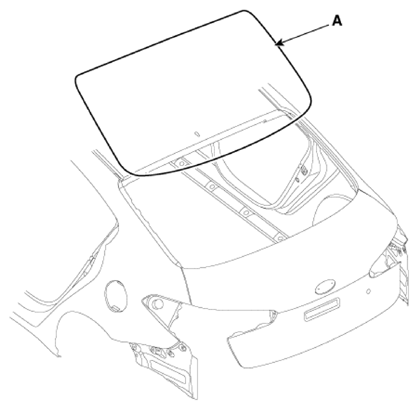

Remove the rear window glass (A).
NOTE: When removing and installing the rear window glass, an assistant is necessary.

Courtesy of KIA MOTORS AMERICA, INC.
