Repair Procedures: Inspection

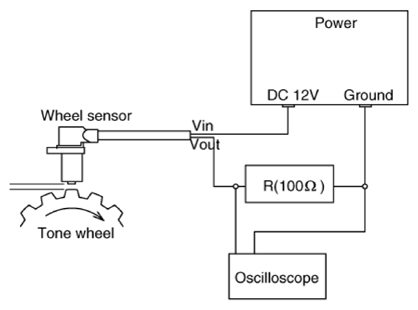

  1. Measure the output voltage between the terminal of the wheel speed sensor and the body ground.
    NOTE: In order to protect the wheel speed sensor, when measuring output voltage, a 100 Ω resister must be used as shown.
    G13305024Courtesy of KIA MOTORS AMERICA, INC.

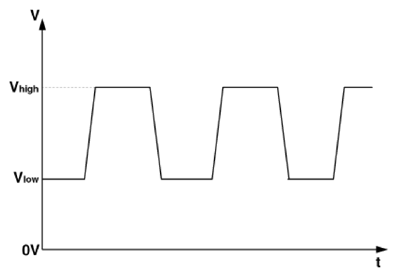

  2. Compare the change of the output voltage of the wheel speed sensor to the normal change of the output voltage as shown below.
    G13305025Courtesy of KIA MOTORS AMERICA, INC.

    V_low: 0.59V - 0.84V

    V_high: 1.18V - 1.68V

    Frequency range: 1 - 2, 500Hz
