Repair Procedures: Removal

1. Remove the front bumper assembly.

   (Refer to Body - "FRONT BUMPER ASSEMBLY ")

2. Remove the horn (A) by loosening the bolt after disconnecting the connector (B).

   Tightening torque:

   9.8 - 11.8 Nm (1.0 - 1.2 kgfm, 7.2 - 8.7 lbft)

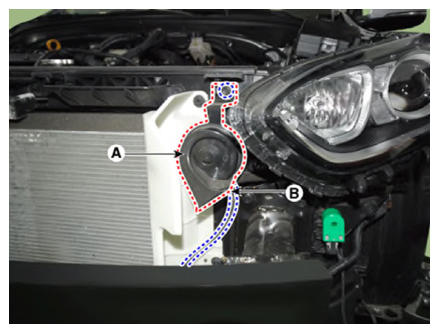

[High]

Courtesy of KIA MOTORS AMERICA, INC.

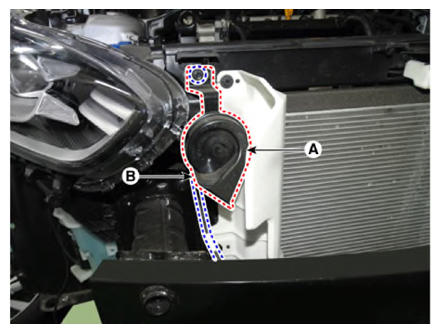

[Low]

Courtesy of KIA MOTORS AMERICA, INC.
