Repair Procedures: Removal

Turn the ignition switch OFF and disconnect the battery negative (-) terminal.
Remove the air cleaner assembly.
(Refer to Engine Mechanical System - "AIR CLEANER ")

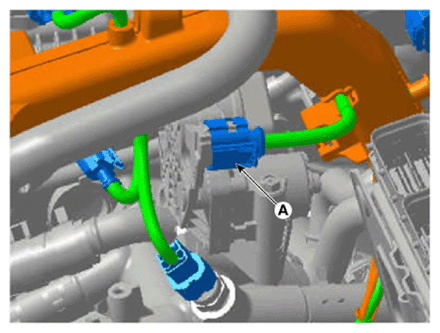

Disconnect the EEGR control valve connector (A).

Courtesy of KIA MOTORS AMERICA, INC.

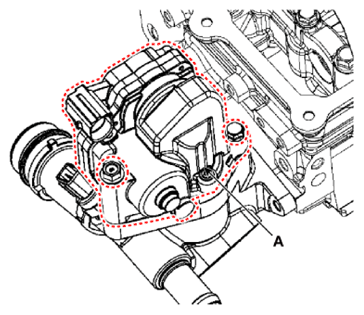

Remove the EEGR control valve (A) after removing the mounting bolts.
Electric EGR control valve mounting bolt:

9.8 - 11.8 N.m (1.0 - 1.2 kgf.m, 7.2 - 8.7 lb.ft)

Courtesy of KIA MOTORS AMERICA, INC.
