Repair Procedures: Removal

  1. Turn the ignition switch OFF and disconnect the battery negative (-) terminal.
  2. Remove the rear seat.

    (Refer to Body - "REAR SEAT ASSEMBLY ")

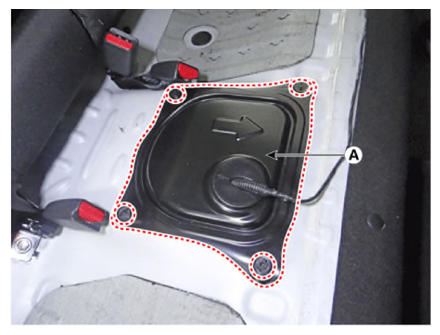

  3. Remove the fuel pump service cover (A).
    G13307168Courtesy of KIA MOTORS AMERICA, INC.

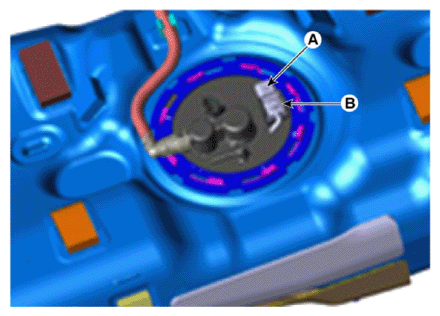

  4. Disconnect the fuel tank pressure sensor connector (A).
  5. Remove the fuel tank pressure sensor (B) after releasing the hooks vertically.
    G13307169Courtesy of KIA MOTORS AMERICA, INC.
