Connector Assembly Status Test

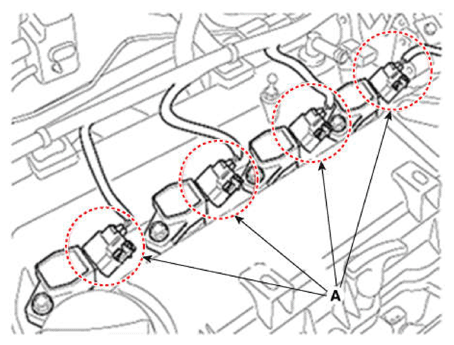

  1. Remove the connector (A) and reinstall it.
G13306995Courtesy of KIA MOTORS AMERICA, INC.

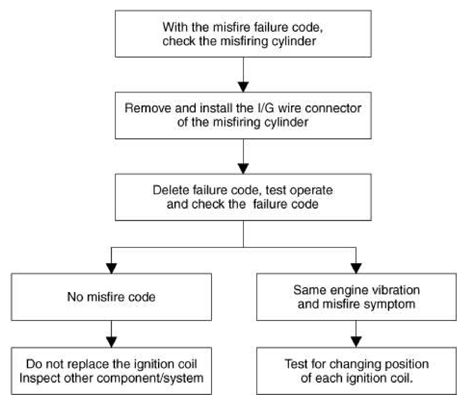

G13306996Courtesy of KIA MOTORS AMERICA, INC.
